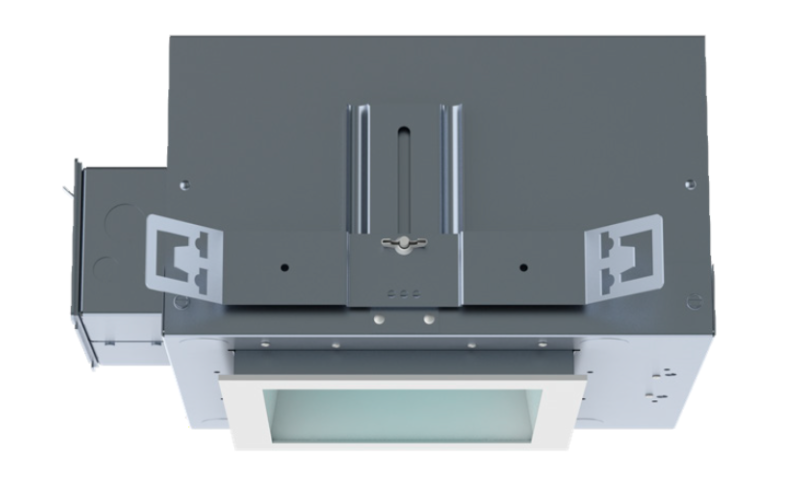

SDFI6XT. 6'' SQUARE IC DOWNLIGHT XT SERIES / 2000 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION
Versatile 6" Square aperture recessed LED downlight for Insulated Ceiling installations with a wide range of lumens and optical controls. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs. See SDZI6 series for trimless plaster or wood ceiling.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI83 98
- Watt(Approx)11.1 W15 W23.7 W
- Lumens(Approx)710 Lm956 Lm1471 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampWetCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth6.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSDFI6XT-RH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
