Spectrum Lighting

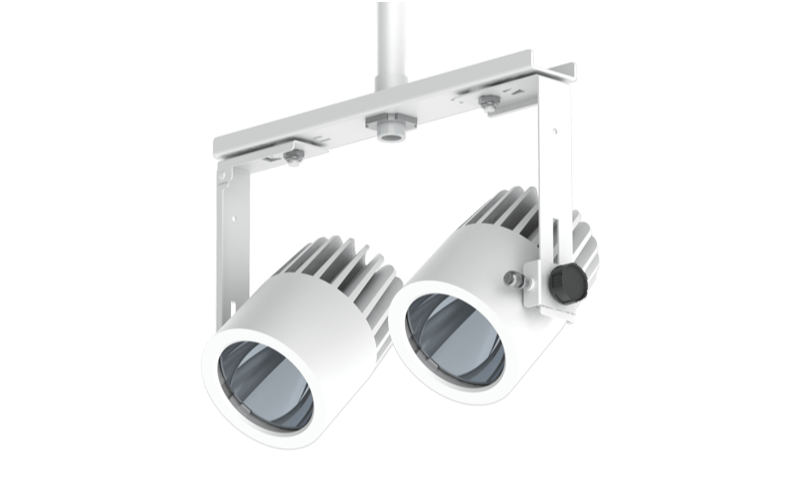

SDT3PC. SDT 3'' DUAL SURFACE TRACKLIGHT EURO SERIES / 4000 LUMENS.
Configure
Add to project
RESOURCES
DESCRIPTION
SDT 3" Dual Euro Series tracklight for accent, display lighting and general illumination. Rounded driver housing for clean design appearance. Front bezel accepts two accessories standard with three accessory option. Fixture rotates 359° and tilts/locks 45°. Passive cooled Zhaga compliant LED module for future maintenance or upgrade. Quick twist LED optics for field adjustment. Five track series available with a variety of surface, pendant and cord/clamp mounting.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.3"L: 3.3"H: 8.8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)8.3 W17.1 W22 W30.4 W
- Lumens(Approx)598 Lm1251 Lm1955 Lm2679 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSDT3XT-RA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
