Spectrum Lighting

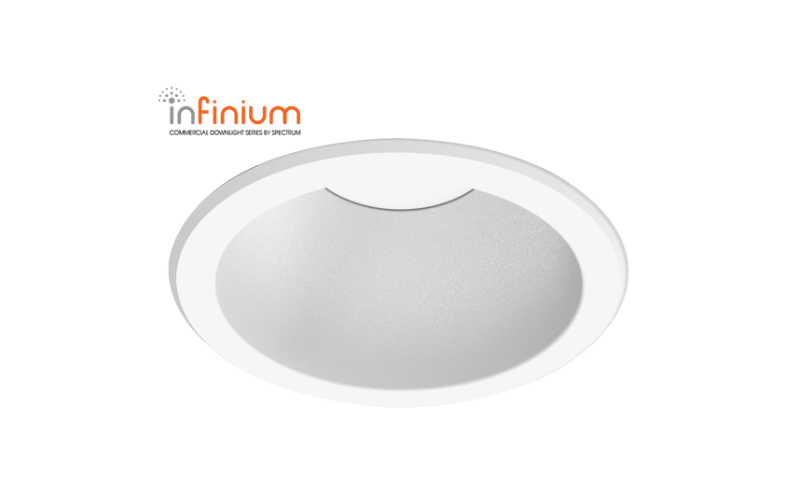

SGE14LEDOS. 14'' ROUND DOWNLIGHT OS SERIES / 4500 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION
14" LED Recessed open aperture downlight for general downlighting. Two-stage optical system for smooth light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver and J-Box access. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Posi-lock trim retention torsion springs. Integral 0.625" collar.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15.2"L: 15.2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)6.6 W10.5 W14.4 W21.9 W30 W38.3 W
- Lumens(Approx)934 Lm1451 Lm1969 Lm2954 Lm3989 Lm5075 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USABAA
- EnvironmentDampWetCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth5.1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSGE14LEDOS-RE
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
