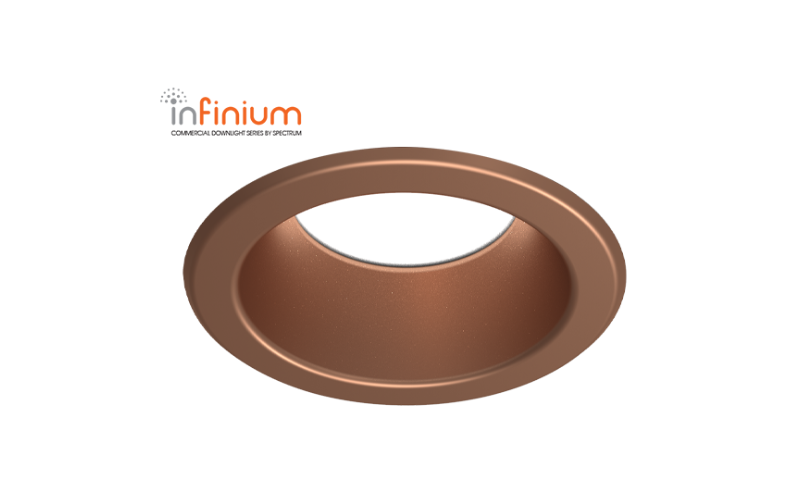

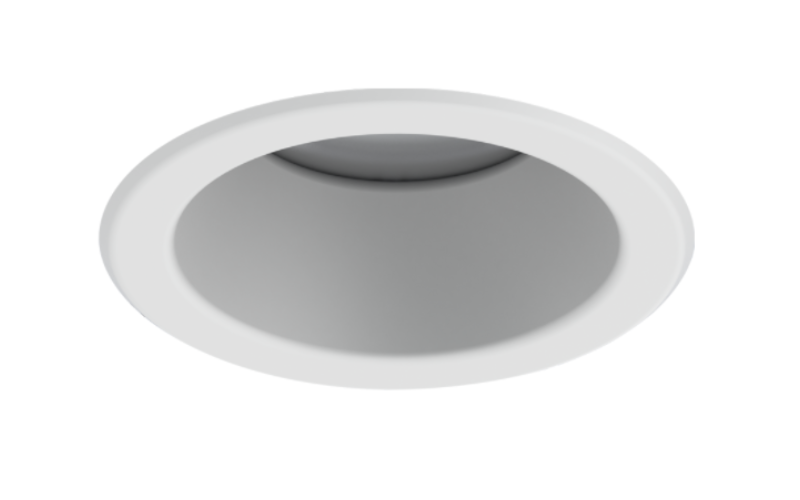

SGE5LEDFX. 5'' ROUND DOWNLIGHT NON-IC CONSTRUCTION.
Configure
Add to project
RESOURCES
DESCRIPTION
ENERGY STAR® Certified when used with SG or MW trims. FX series 5" diameter downlights, designed for general downlighting with smooth light distribution. Shallow plenum construction. Wide range of apertures. Companion retrofit and remodel fixtures available. Auto dim thermal protector for long term reliability. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets, fit a variety of mounting bars. Posi-lock trim retention torsion springs. Integral 5/8" (.625) collar, works in ceiling up to 1" Deep. BH27 Standard mounting bars included. Intended for Non-IC new construction.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.3"L: 6.3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)6.6 W10.5 W14.4 W21.9 W30 W38.6 W
- Lumens(Approx)742 Lm1195 Lm1608 Lm2391 Lm3215 Lm4122 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.4 ''
