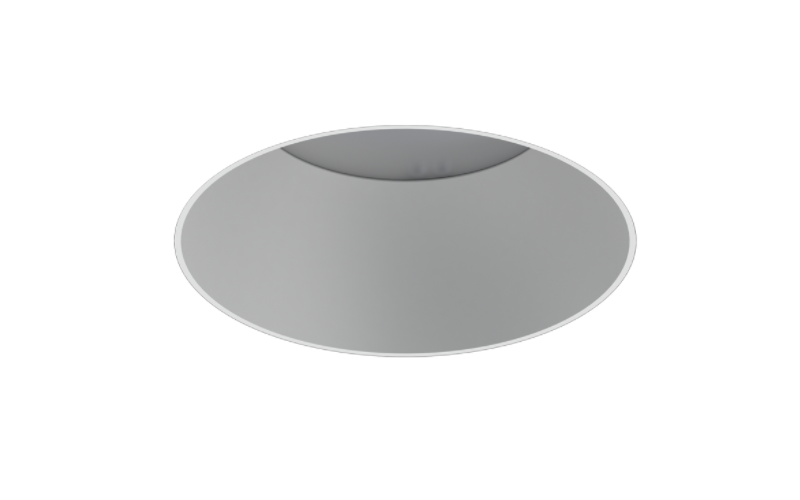

SGE6PZLEDFX. 6'' ROUND FLANGELESS DOWNLIGHT FX SERIES / 4000 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION
FX series 6" diameter downlight with flangeless trim, designed for general downlighting with smooth light distribution. Shallow plenum construction. Auto dim thermal protector for long term reliability. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets, fit a variety of mounting bars. Posi-lock trim retention torsion springs. Integral 5/8" (.625) collar, works in ceiling up to 1" Deep. BH27 Standard mounting bars included. Intended for Non-IC new construction.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.8"L: 5.8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)6.6 W10.5 W14.4 W21.9 W30 W38.3 W
- Lumens(Approx)746 Lm1160 Lm1574 Lm2361 Lm3188 Lm4056 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew Construction
- Housing Depth4.7 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
