SGE6PZLEDOS. 6'' ROUND TRIMLESS DOWNLIGHT OS SERIES / 4500 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

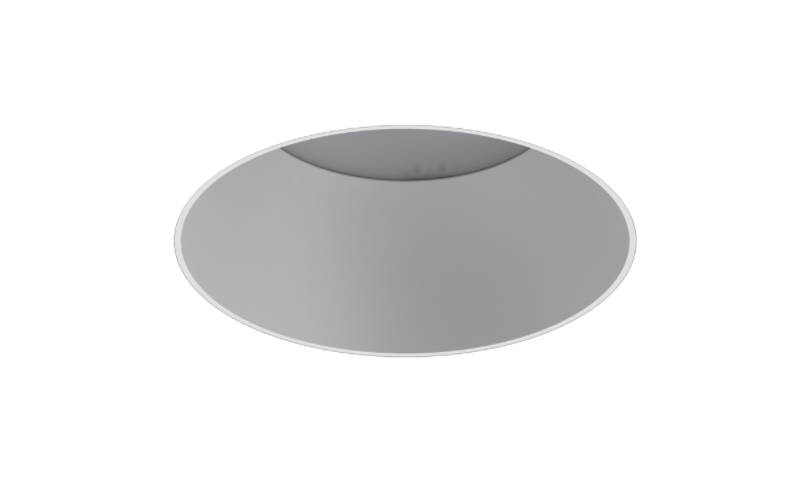

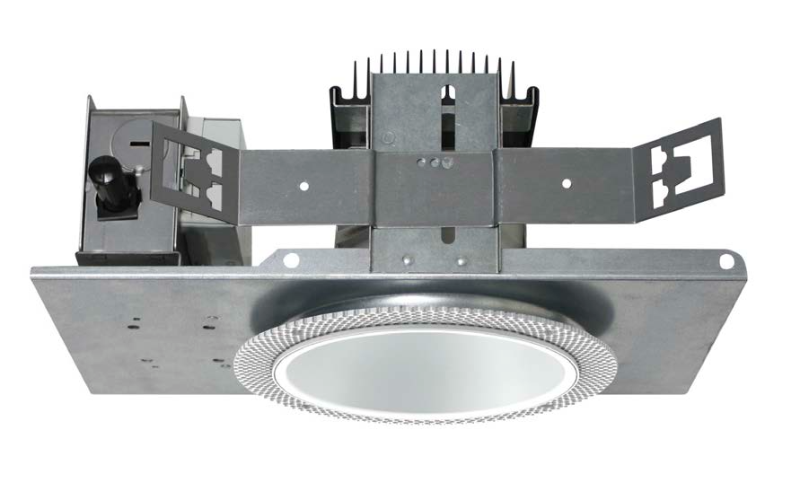

6" LED Recessed open aperture downlight with flangeless trim for general downlighting. Two-stage optical system for smooth light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver and J-Box access. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Posi-lock trim retention torsion springs. Integral 0.625" collar.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.8"L: 5.8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI84
- Watt(Approx)11 W13 W20 W28 W41 W
- Lumens(Approx)878 Lm1092 Lm1864 Lm2563 Lm3793 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkZigBeeBluetooth
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampCorrosion Resistant
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew Construction
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSGE6PZLEDOS-RE
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
