SGE8LEDGV. 8'' ROUND DOWNLIGHT GV SERIES / 6000 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

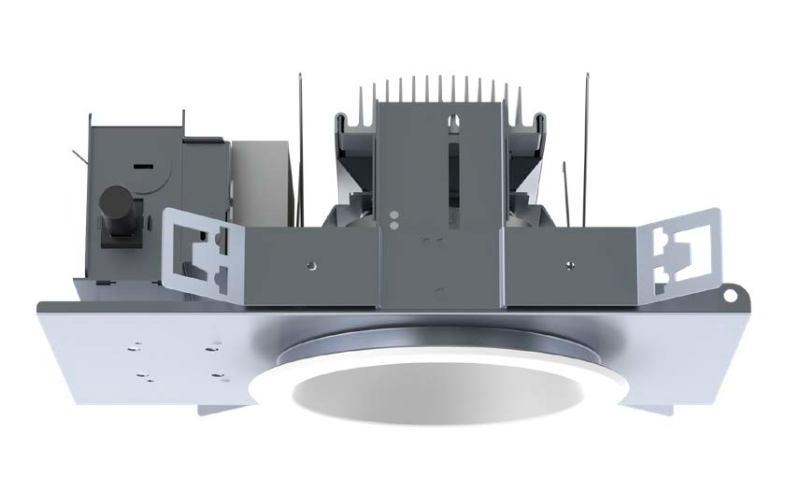

8" Round aperture shallow plenum recessed LED downlight for general illumination. Two-stage optical system with medium depth reflector design delivers smooth glare-free general illumination. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Posi-lock trim retention springs. Integral 0.625" collar, with Deep Ceiling Extension (PR), consult factory.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.1"L: 9.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI85
- Watt(Approx)13.3 W22.3 W29.1 W42.6 W48.6 W
- Lumens(Approx)1500 Lm2700 Lm3700 Lm5500 Lm6000 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampWetCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSGE8LEDGV-RD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
