Spectrum Lighting

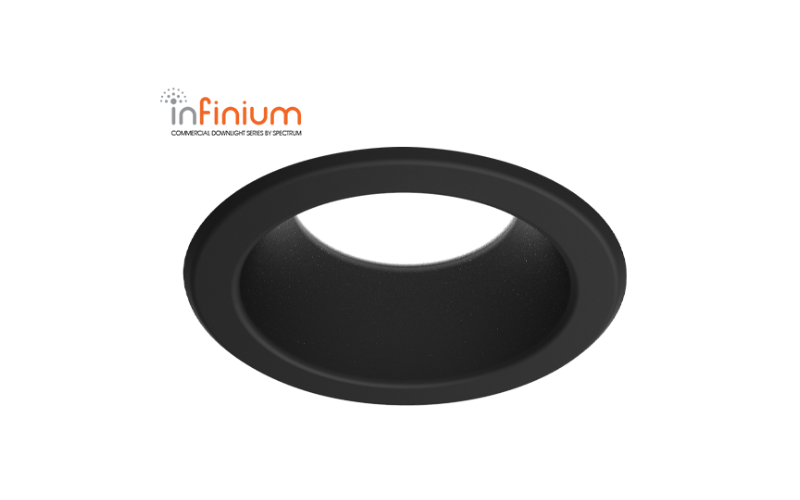

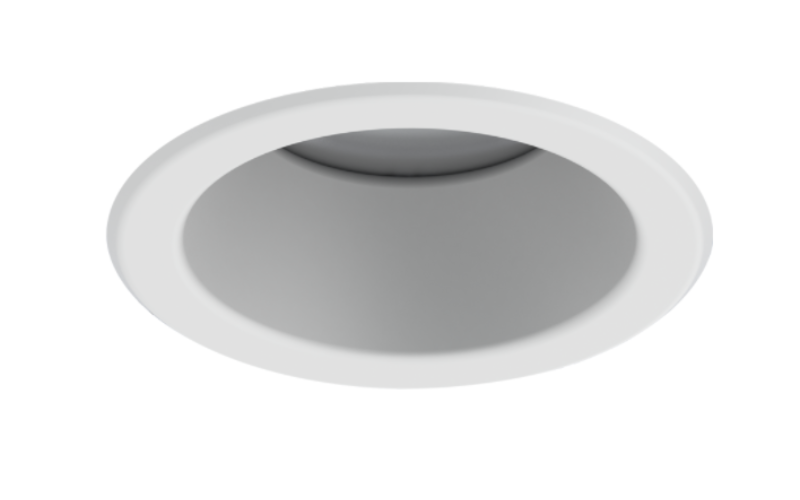

SGECS4. 4'' ROUND DOWNLIGHT IC NEW CONSTRUCTION.
Configure
Add to project
RESOURCES
DESCRIPTION

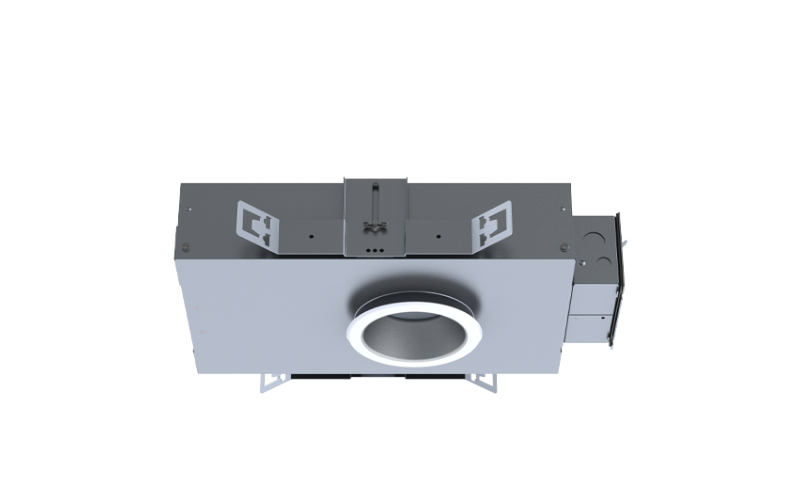

High lumen, 3.6" deep 4" aperture recessed LED downlight. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets, fit a variety of mounting bars. Integral 5/8" (.625) collar, see PR option for thicker ceilings. BH27 Standard mounting bars included.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.4"L: 5.4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)6.6 W14.1 W21.9 W30.3 W
- Lumens(Approx)720 Lm1501 Lm2221 Lm3009 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC
- Housing Depth3.6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSGECS4FX-RA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
