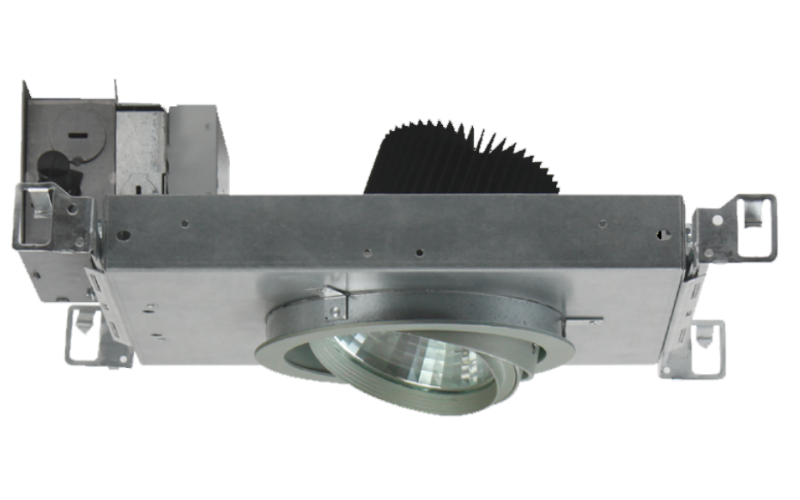

SGM6XT. 6'' BIAXIAL TILT ACCENT / NON-IC XT SERIES / 4000 LUMENS.
Configure
Add to project
RESOURCES
DESCRIPTION
Biaxial Tilt adjustable accent light for retail, residential and commercial ceiling. LED assembly Biaxial Tilt to 20° and rotates 360° for optimal aiming. Single optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs. Front loading bezel for lens or louver accessories.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.5"L: 6.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI83
- Watt(Approx)9.1 W13 W21.7 W32.6 W39.9 W
- Lumens(Approx)1000 Lm1300 Lm2000 Lm3000 Lm4000 Lm
- OpticsDirectMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSGM6XT-RG
