SGRTV12BX. 12'' ROUND DOWNLIGHT BX SERIES / 8000 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

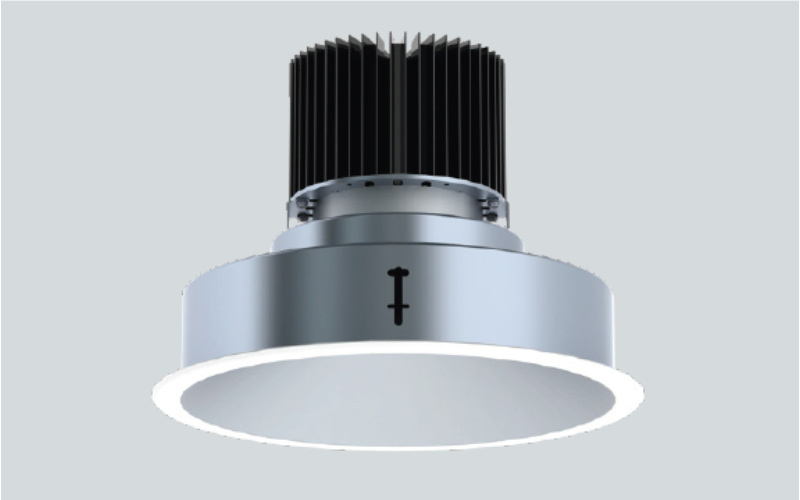

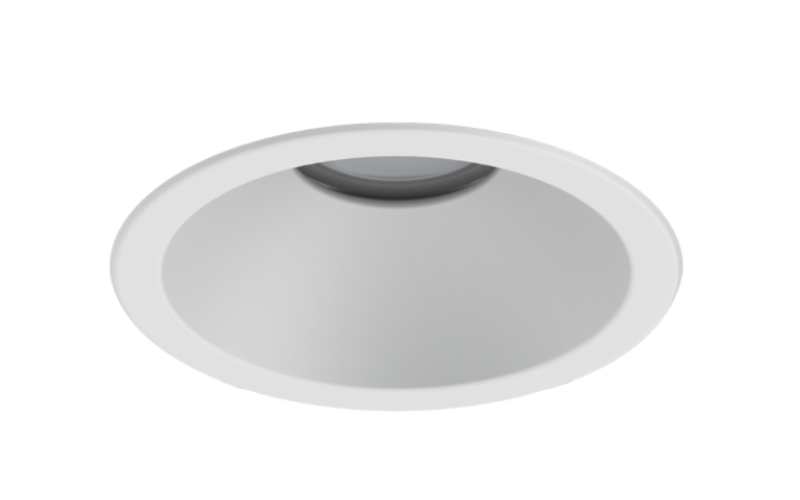

12" round open aperture deep regressed Retrofits high output LED downlight for high ceiling illumination in malls, churches and commercial applications. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Tool-less driver and j-box access. Posi-lock trim retention torsion springs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13.2"L: 13.2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)44 W51 W60 W
- Lumens(Approx)4916 Lm5563 Lm6469 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/NetworkBluetooth
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingRemodelRetrofit
- Housing Depth9.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
