Spectrum Lighting

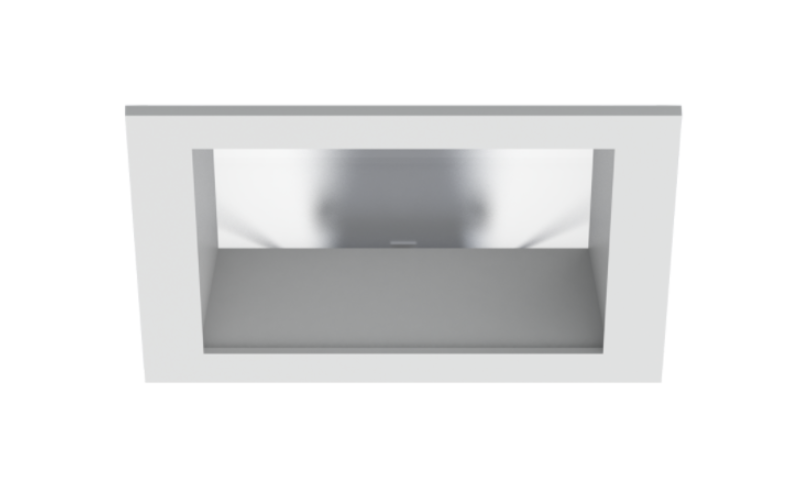

SGS6SQLEDOS. 6'' SQUARE LED DOWNLIGHT SHALLOW PLENUM OS SERIES / 4500 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

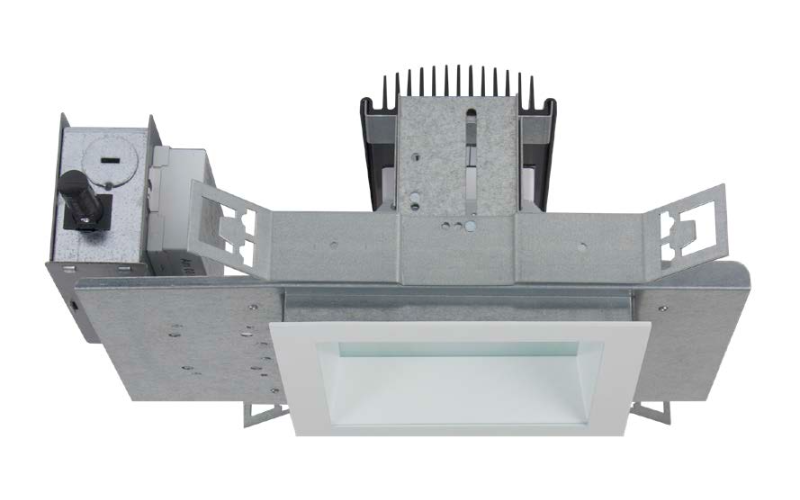

6" LED Recessed shallow plenum square aperture downlight for general downlighting. Two-stage optical system for smooth light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver and J-Box access. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Posi-lock trim retention torsion springs. Integral 0.625" collar.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI84
- Watt(Approx)11 W13 W20 W28 W41 W
- Lumens(Approx)1100 Lm1500 Lm2000 Lm3000 Lm4500 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkZigBeeBluetooth
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampWetCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
