Spectrum Lighting
SGV8LX. 8'' DEEP ROUND LX SERIES / 17000 LUMENS.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

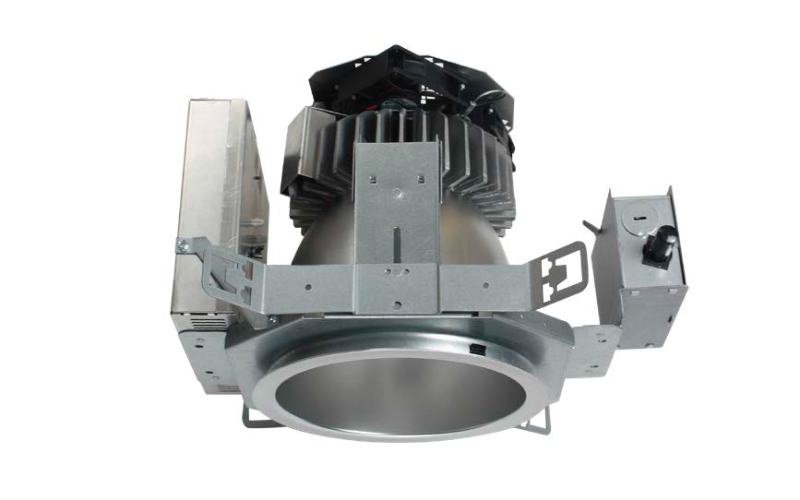

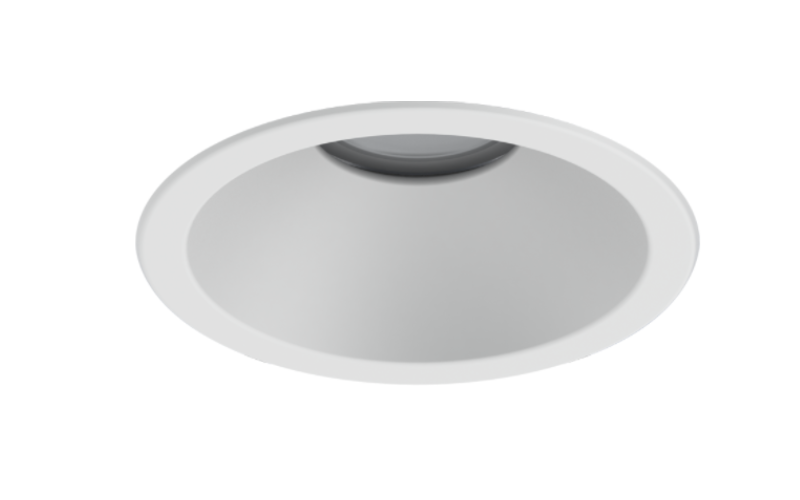

8" recessed open aperture high output fixture for high ceiling area lighting with deep cutoff. Single stage optical system with deep reflector design delivers smooth general illumination. Delivers a range of 5300-11700 lumens. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Integral 0.625" collar, with plaster option (PR) for up to 3" thick ceiling.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)86.1 W
- Lumens(Approx)7199 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%0-10VDMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampCorrosion Resistant
- Mounting TypeCeiling RecessedDrywall
- HousingNew Construction
- Housing Depth10.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSGV8LX-RB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
