Spectrum Lighting

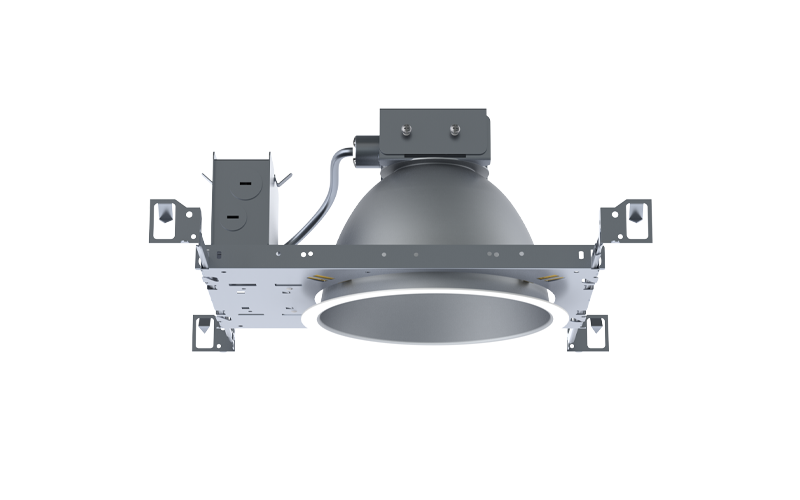

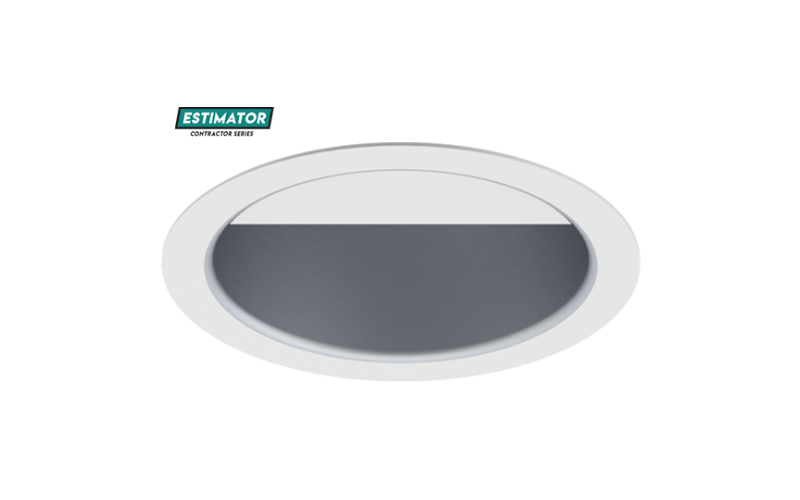

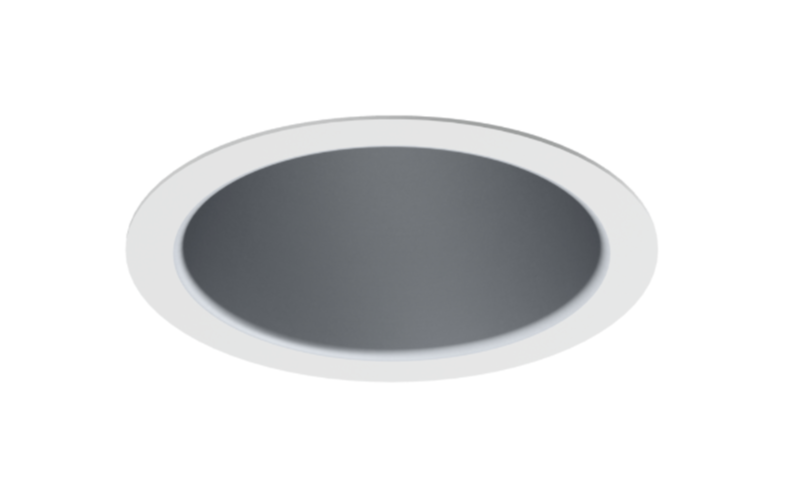

SP8ES. 8'' ROUND DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
ENERGY STAR® Certified when used with AR8ES and SG or MW trims only. Quick Ship highlights products that can ship in 3 - 5 working days. 8" downlight and wall wash series with deep regress for visual comfort providing 50° source cutoff. Optional downlight lens for wet location applications. Zhaga international standard LED module for ease of maintenance and future replacement. Tool-less LED module and J-Box access. Expandable 14.2"-26". bar hangers included. Quick connect LED module and trim attachment.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.8"L: 8.8"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)11 W15 W20 W
- Lumens(Approx)953 Lm1299 Lm1732 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth6.1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSP8ES-RB_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
