Spectrum Lighting
SS3M. 3'' SQUARE DOWNLIGHT 3000 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

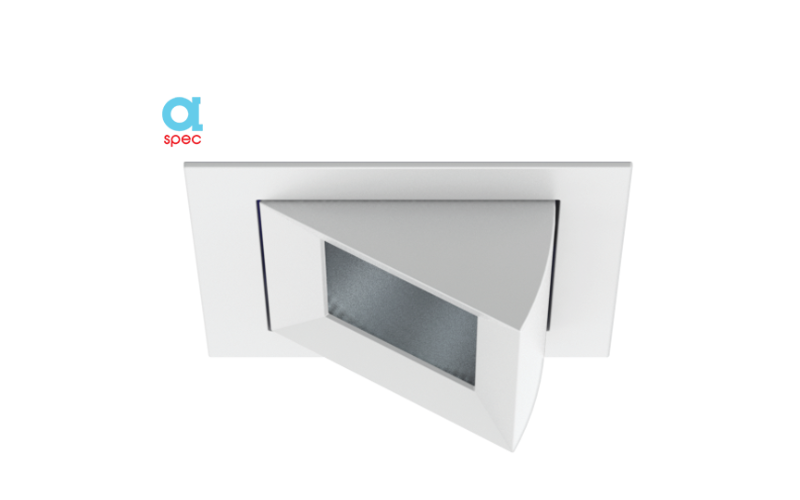

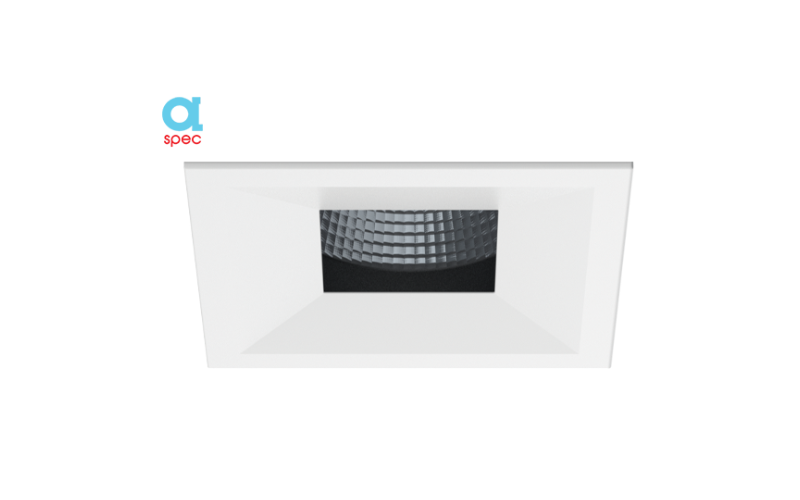

Spectrum’s A Spec 3" recessed square downlight series features a shallow plenum housing and variety of trims for accent and general illumination. Precision Die-formed 20 gauge galvanized steel housing and integral junction box with (3) 5/8", (3) 7/8" and (2) 1 1/8" knockouts. Junction box capacity: 8 12AWG rated for 90 °C. Tool-less driver and junction box access for ease of maintenance. Posi-loc trim rentention springs for 5/8"-1" ceiling thickness. Use PR2 for up to 2" thick ceiling. For thicker ceilings consult factory.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: 4.5"H: 0.7"0.6"0.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI83 98
- Watt(Approx)11.1 W15 W23.7 W34.6 W
- Lumens(Approx)785 Lm1058 Lm1627 Lm2441 Lm
- OpticsDirectNarrowFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/NetworkBluetooth
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICRemodel
- Housing Depth3.43 ''3.67 ''3.9 ''3.7 ''4.17 ''4.4 ''4.7 ''4.5 ''4.9 ''5 ''4.2 ''4.6 ''4.1 ''5.2 ''5.4 ''6.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSS3M-XT-S-RK
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
