Spectrum Lighting

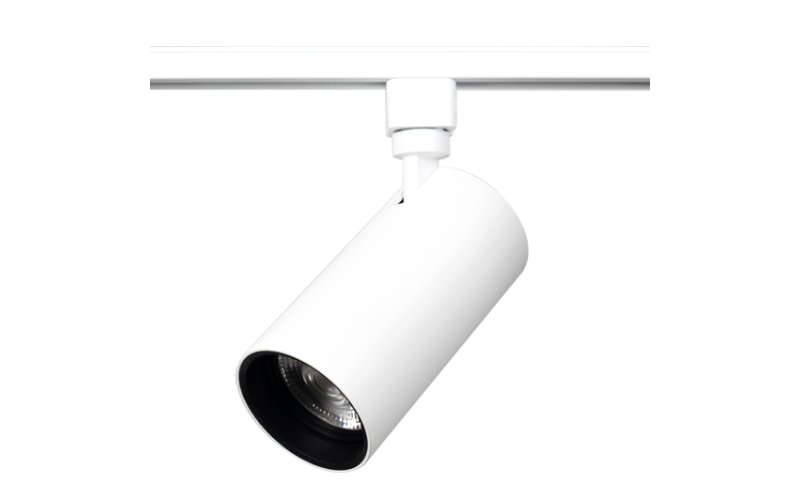

TSRA31BET. 3'' Track Spot Luminaire with Regressed Arm.
Configure
Add to project
RESOURCES
DESCRIPTION
3" Diameter Track spot designed for retail, hospitality and commercial spot lighting applications. TSRA31 fixture delivers approximately 2100 initial lumens viz precise TIR optics. Available in four distinct beam patterns. Regressed optic produces clean beam with smooth edge and is field interchangeable to other beam angles without tools. Integral flat black baffle reduces peripheral brightness. Sturdy, regressed support arm has positive friction-grip hardware that will not sag, or rotate out of aiming position over time. Clean cylindrical housing has no exposed hardware and can rotate 359 degrees with up to 90 degree aiming from nadir. Integral
on/off switch for convenience.
on/off switch for convenience.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.2"L: 3.2"H: 8.4"
- Light SourceLED
- CCT/Color3000K3500K
- CRI80
- Watt(Approx)28 W
- Lumens(Approx)2100 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
