Spectrum Lighting

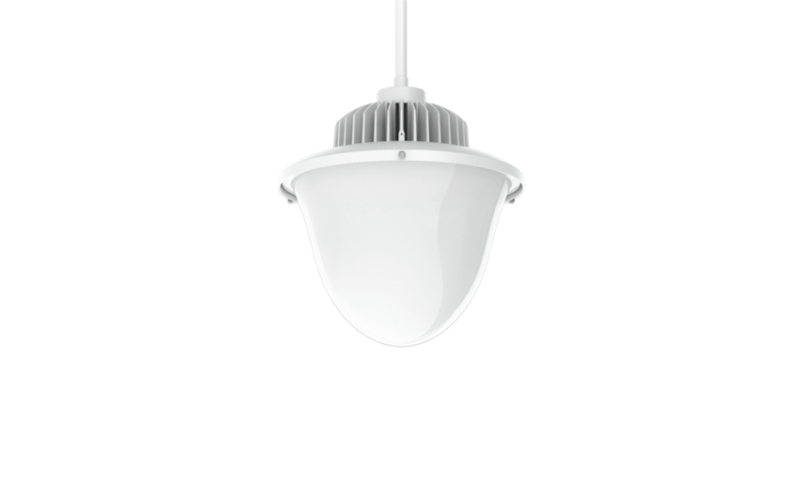

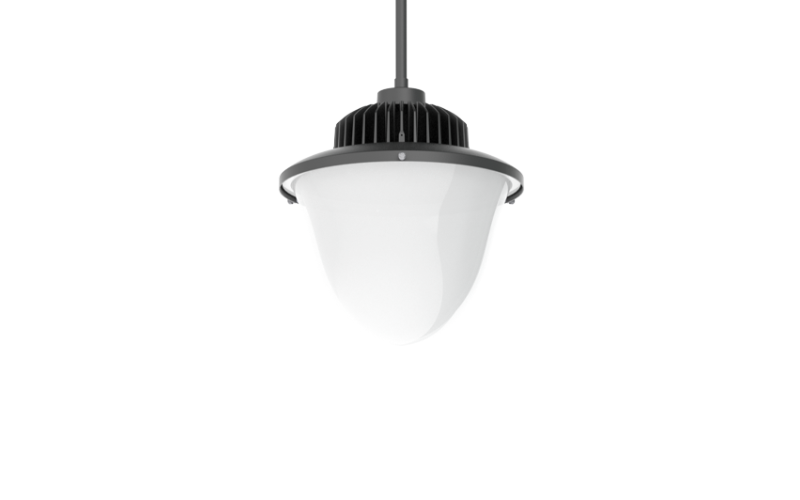

WA1212LX. 12" Low/Mid/High Bay 8950 Lm Opal Refractor.
Configure
Add to project
RESOURCES
DESCRIPTION
12" opal acrylic pendant for wide general illumination. WA1212LX opal acrylic refractor glows evenly with no glare or hot spots. Ideal for libraries, churches, retail or any area where smooth, glare free illumination is required. Single mid-powered LED Modules. A wide variety of mounting options. LED module and driver are serviceable for future replacement and maintenance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13.12"L: 13.12"H: 13.9"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)56.3 W88 W
- Lumens(Approx)5969 Lm8933 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
