Streetworks (Cooper Lighting Solutions)
GAN. Galleon LED Offset.
Configure
Add to project
RESOURCES
DESCRIPTION

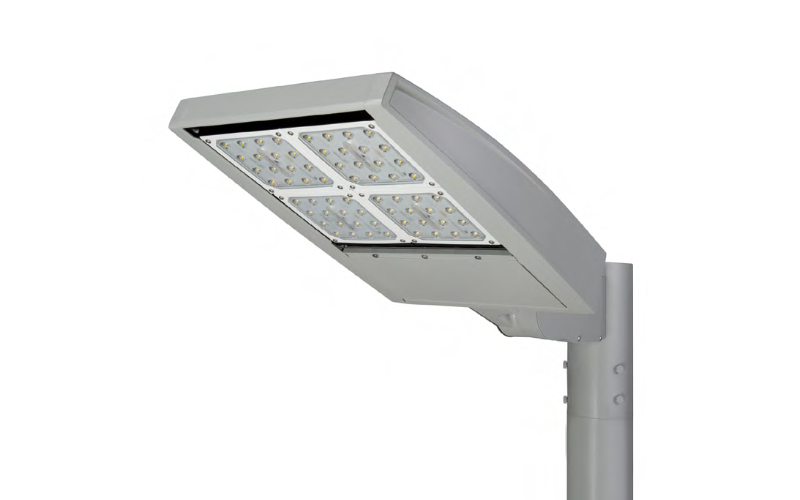

The Galleon™ LED Flood luminaire combines the low-profile design of the Galleon with the mounting angle flexibility of a pole-mounted floodlight to illuminate large areas. With a maximum tilt angle of 60° from horizontal, and patented, high-efficiency AccuLED Optics™ technology, the Galleon LED Flood provides uniform and energy conscious illumination for parking lots, container/rail yards, highway projects or any large area application. Fixture mounts direct to pole or to a bullhorn or 2-3/8" – 3" O.D. pole-top tenon. IP66 rated and UL/cUL Listed for wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15 1/2"H: 3 15/16"
- Light SourceLED
- CCT/ColorAmber (WildLife)2400K or less2700K3000K3500K4000K5000K6000K
- CRI70 80
- Watt(Approx)34-323 W44-419 W59-558 W67-640 W
- Lumens(Approx)4787-47322 Lm5871-58030 Lm7267-71824 Lm7972-78790 Lm
- OpticsDirectType IType IIType IIIType IVType VArea 90°
- Adjustable
- DimmingDim to 3-10%Bi-Level0-10VDALI
- Controls/NetworkEnlightedBluetoothIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance2400000 h
- CertificatesUL/CULDLC*
- EnvironmentIP66
- Mounting TypeTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGAN-O
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
