Streetworks (Cooper Lighting Solutions)
VST. VENTUS AREA LUMINAIRE LED.
Configure
Add to project
RESOURCES
DESCRIPTION

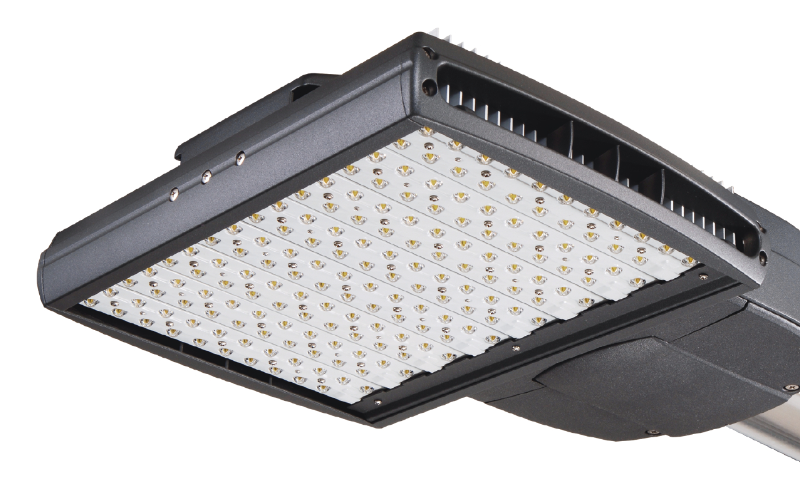

The VST Ventus LED area luminaries provides uncompromising optical performance and outstanding versatility for a wide variety of area and roadway applications. Patent pending modular LightBAR technology delivers uniform and energy conscious illumination to walkways, parking lots, roadways, building areas, and any security lighting application. UL and cUL listed for wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12 7/8"18"25 7/8"L: 28 3/8"H: 5 1/4"
- Light SourceLED
- CCT/Color3000K5000K5700K
- CRI70 80
- Watt(Approx)52 W75 W55 W97 W78 W127 W149 W102 W133 W173 W195 W226 W247 W157 W180 W204 W235 W270 W292 W259 W283 W307 W
- Lumens(Approx)6398 Lm5281 Lm9597 Lm7922 Lm12795 Lm10563 Lm13204 Lm15994 Lm19193 Lm15844 Lm18485 Lm22392 Lm25591 Lm28790 Lm21126 Lm23767 Lm26407 Lm29048 Lm31989 Lm35187 Lm38386 Lm31689 Lm
- OpticsDirectWide FloodType IIType IIIType IVType VArea 90°
- Adjustable
- DimmingDim to 3-10%Bi-Level0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance450000 h
- CertificatesUL/CULBAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmWall Arm/CantileverTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVST
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
