Trace Lite (Barron Lighting Group)

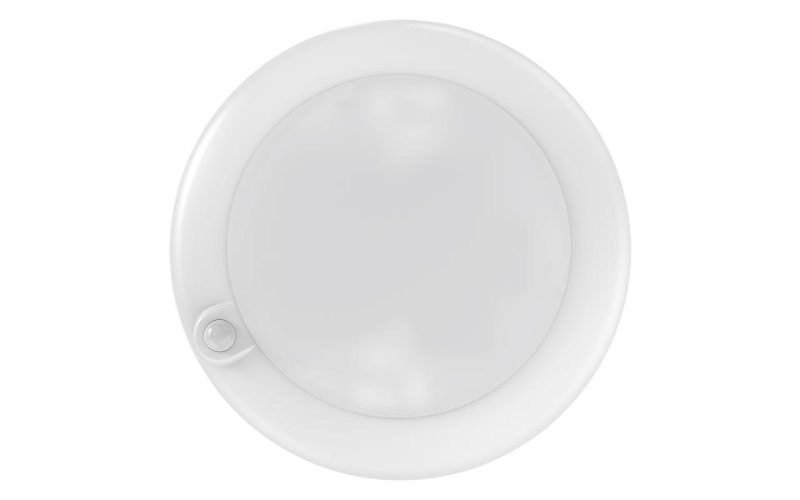

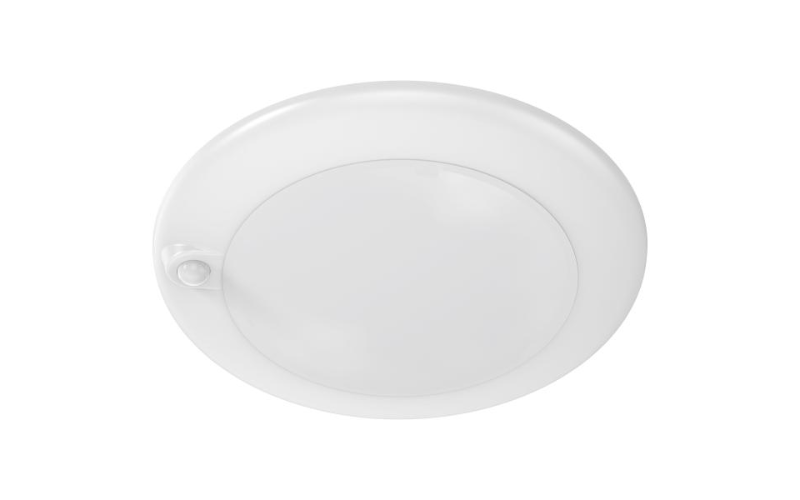

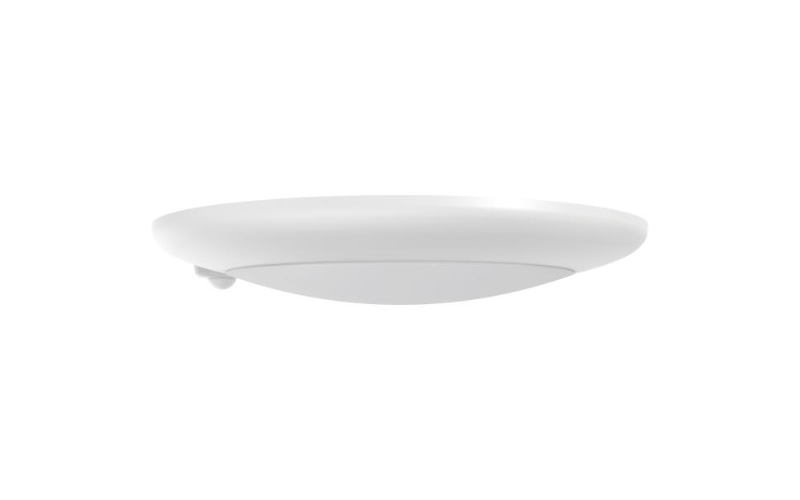

DDXS. Surface Mount LED Downlight with PIR Sensor.
 Configure
 Add to project
DESCRIPTION
The DDXS Series is a 120V, surface mount, LED dome downlight that provides project flexibility with field-selectable color temperature (2700K, 3000K, 3500K, 4000K, and 5000K CCT) and built in motion sensor. The DDXS is 6” and offers 1,250 lumens, and the twist-lock diffuser and included hardware allow for easy installation directly to a junction box. The DDXS can also seamlessly retrofit 4” to 6” cans with optional torsion clips and E26 medium screw-base Edison connector. This fixture is Energy Star certified and California Title 24 JA8-2019 compliant. This low-profile, attractive surface mount downlight is ideally suited for residential, retail, light commercial, closets, and other interior spaces that utilize a traditional downlight or surface mount product.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 7.35”
    L: 7.35”
    H: 1.1"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KField Select CCT
  • CRI
    90
  • Watt(Approx)
    15 W
  • Lumens(Approx)
    1240 Lm
  • Optics
    DirectWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    Integral120V
  • Integral Emergency
  • Lumen Maintenance
    100000 h
  • Certificates
    ETLT24*Energy Star*
  • Environment
    Wet
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
