Trace Lite (Barron Lighting Group)
MRK. LED Magnetic Retrofit Kit.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

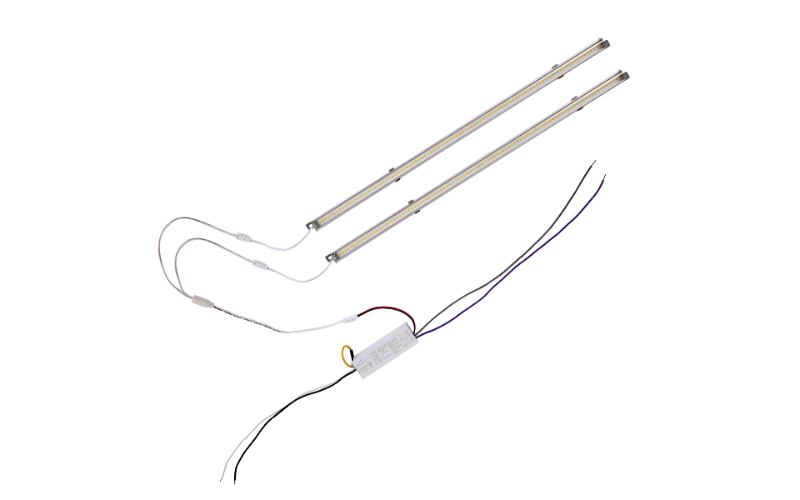

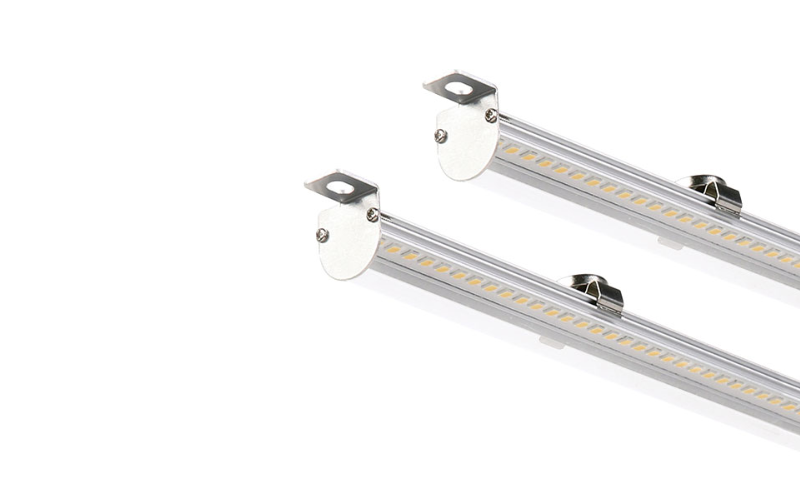

The MRK series is an ideal economic, energy saving LED replacement for fluorescent 2’ and 4’ fixtures. Magnets on the fixture make for simple installation in recessed troffer and drop ceilings. The lightweight MRK series offers a lumen package range of 3500 to 5200, is available in 4000K and 5000K CCT and features efficacies up to 133 LPW. This retrofit kit is ideal for general lighting applications including offices, hallways, lobbies, and school installations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 21.7"45.6"L: 0.8"H: 0.8"
- Light SourceLED
- CCT/Color4000K5000K
- CRI80
- Watt(Approx)32 W39 W
- Lumens(Approx)3973 Lm5008 Lm
- OpticsDirectType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeRetrofit
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMRK
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
