Trace Lite (Barron Lighting Group)

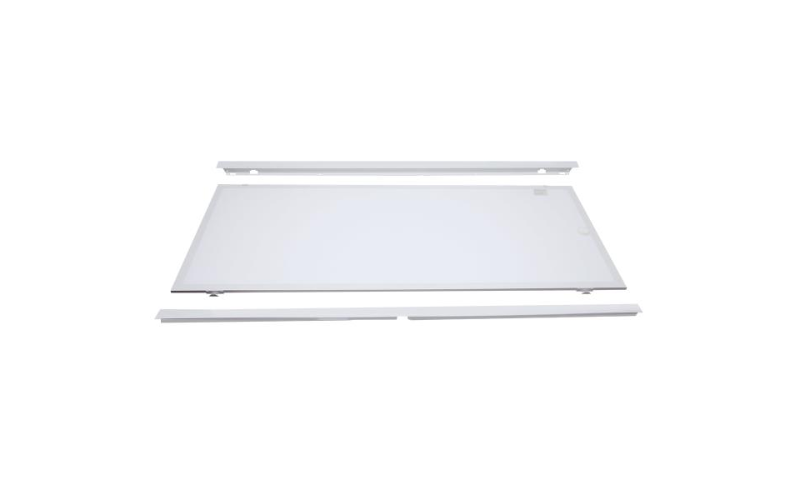

RKLP. LED Flat Panel Retrofit Kit.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Inventory Available Q1 2025 - The RKLP Series LED Flat Panel Retrofit Kit - the ultimate solution for hassle-free lighting upgrades. These kits are designed with a two rail mounting system for effortless and quick installation, and are sensor ready with a built in AUX receptacle. They also feature both color and power selectability. The kit allows for power selection between 20W, 25W, and 30W for the 2' x 2' unit, and 30W, 40W, and 50W for the 2' x 4' kit. Both sizes provide CCT options of 3500K, 4000K, and 5000K, ensuring optimal lighting customization for any space from offices to retail. Upgrade your lighting with the RKLP Series and experience the future of lighting with ease and efficiency.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3500K4000K5000KField Select CCT
- CRI80
- Watt(Approx)20 W25 W30 W40 W50 Wswitchable
- Lumens(Approx)2700 Lm3300 Lm3900 Lm5100 Lm6300 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLDLC*
- EnvironmentDamp
- Mounting TypeRetrofitDrywallT-Grid Ceiling
- HousingRetrofit
- Housing Depth2.38 ''
