Trace Lite (Barron Lighting Group)
RXAR. LED Area Light.
 Configure
 Add to project

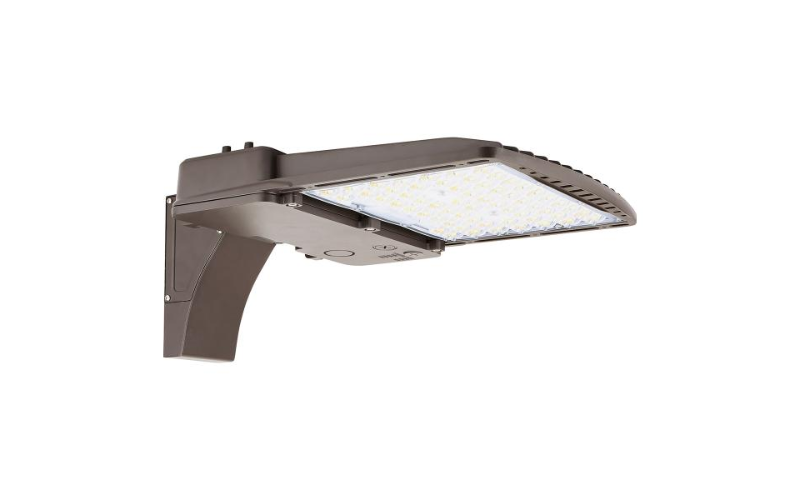

Trace Lite. RXAR. LED Area Light.

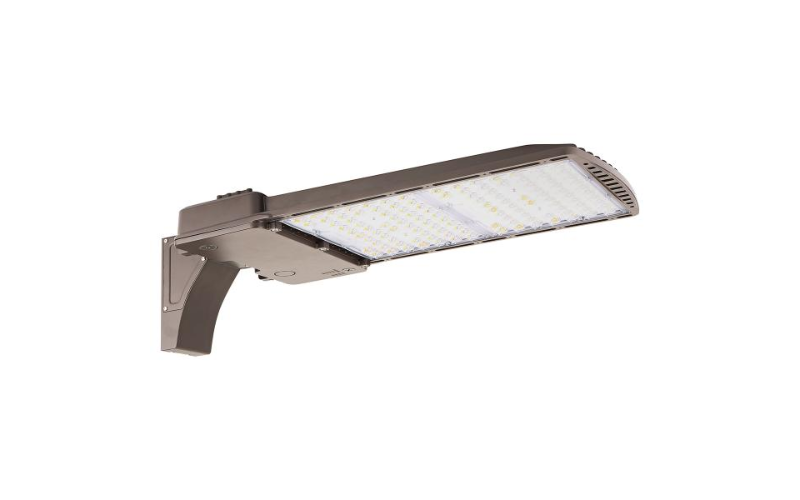

Trace Lite. RXAR. LED Area Light.

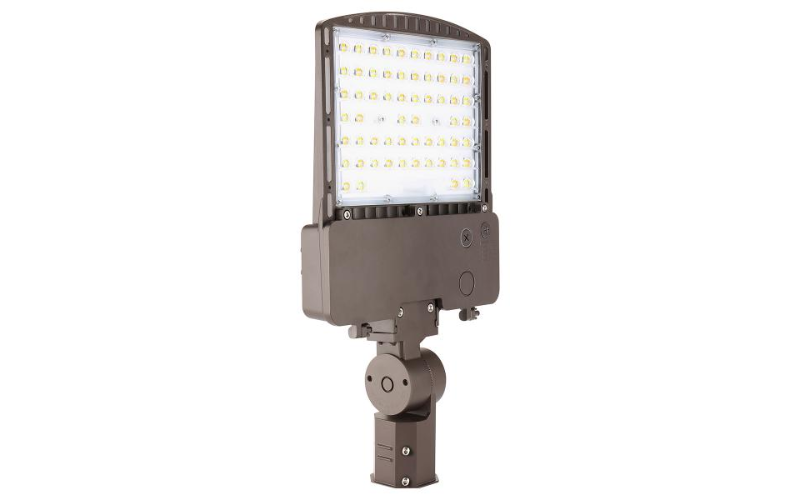

Trace Lite. RXAR. LED Area Light.
Trace Lite. RXAR. LED Area Light.
RESOURCES
DESCRIPTION
The RXAR Series LED area luminaire offers performance and durability with a rugged, one-piece die-cast aluminum housing and high efficacy of up to 172 lumens per watt. This versatile luminaire is designed to ensure optimal heat dissipation and energy efficiency, guaranteeing longevity and reliability. It is available in Type II, III, IV, and V distributions to cater to diverse lighting needs while maintaining zero uplight to eliminate light pollution. With field switchable power (6,200 to 62,400 lumens), and CCT (3000K, 4000K, and 5000K), the RXAR Series offers unparalleled flexibility. Includes straight arm for mounting to 4" and 5" square or round pole.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 13.01”
    L: 15.59”24.9"
    H: 2.52”
  • Light Source
    LED
  • CCT/Color
    3000K4000K5000KField Select CCT
  • CRI
    70 80
  • Watt(Approx)
    40 W60 W90 W100 W120 W140 W150 W200 W250 W180 W240 W300 W325 W360 W400 Wswitchable
  • Lumens(Approx)
    6800 Lm10000 Lm10300 Lm15100 Lm20000 Lm16100 Lm19600 Lm23000 Lm23200 Lm29000 Lm30200 Lm37000 Lm44700 Lm50100 Lm52200 Lm57600 Lm62400 Lmswitchable
  • Optics
    DirectType IIType IIIType IVType V
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    BluetoothIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277V277VUNC 347-480V
  • Integral Emergency
  • Lumen Maintenance
    100000 h
  • Certificates
    UL/CULDLC*
  • Environment
    IP65
  • Mounting Type
    Pole/Mast ArmWall SurfaceTrunnionSlip Fitter
  • Housing
  • Housing Depth
