Trace Lite (Barron Lighting Group)

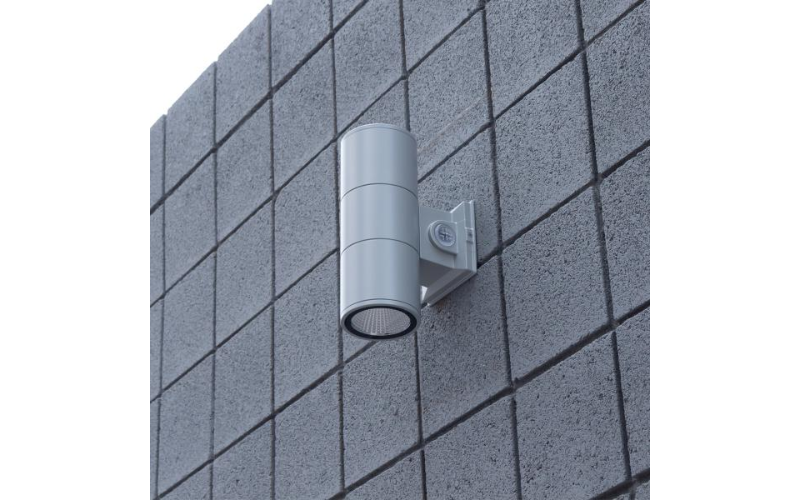

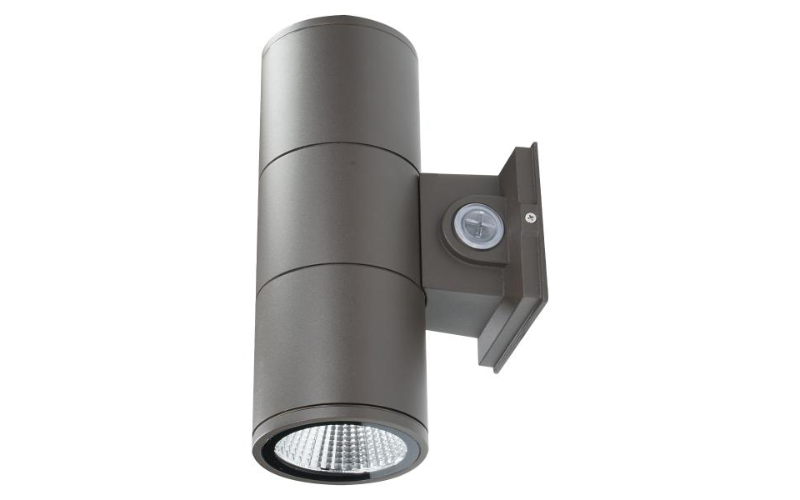

UDC. 4” Architectural LED Up/Down Cylinder Wallpack.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The new UDC Series 4” architectural cylinder is the ultimate solution for versatile, customizable illumination. This innovative fixture offers field-switchable downlighting and uplighting capabilities, as well as field-switchable CCT (3000K-4000K-5000K) and power (12W-16W-20W) all in one package. With energy-efficient, long-life LEDs offering up to 2,100 lumens and featuring dual light sources for both up and down accent lighting, the UDC Series ensures a perfect blend of functionality and aesthetics. It comes standard with 3 sets of in-the-box reflectors that enable you to easily choose between a 25°, 40°, or 60° beam angle. Housed within a sleek, single enclosure designed for superior thermal performance, the UDC Series is equally suited for interior or external applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.7"L: 4.17"H: 11.02"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI90
- Watt(Approx)12 W20 W16 Wswitchable
- Lumens(Approx)1140-1260 Lm1900-2100 Lm1520-1680 Lmswitchable
- OpticsDirect/IndirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
