Trace Lite (Barron Lighting Group)

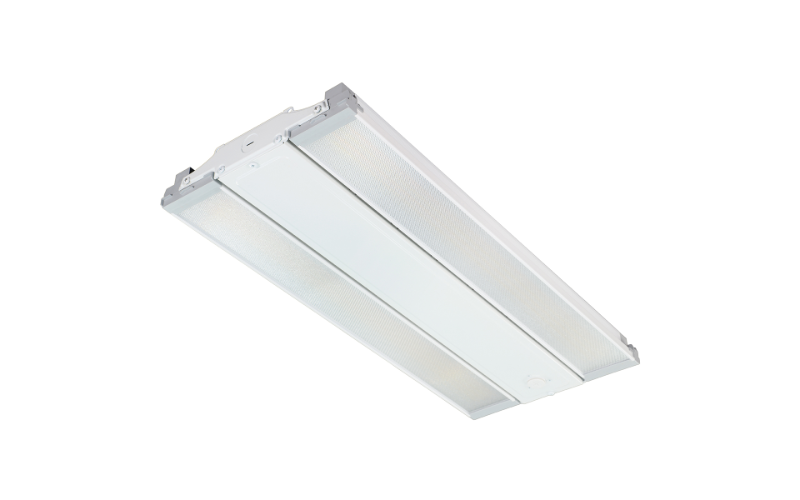

ULHB. LED Linear Highbay with Uplight.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The ULHB Series linear highbay with uplight offers superior performance and energy-efficiency in a low-profile, compact design. An extremely flexible solution to fit any situation, this series offers CCT selection between 3000K, 3500K, 4000K, and 5000K, and 3 power level selections in lumen packages up to 60,000 lumens. The ULHB is available with multiple options and accessories including a 15% uplight module, general, aisle, and wide lens distribution, rotatable LED panels, and integral battery backup. This flexible highbay also offers convenient control accessories with LiteLogic Bluetooth® enabled plug and play sensors. It comes standard with 10’ aircraft mounting cables and can be stem or pendant mounted with optional accessories. The ULHB highbay is ideal for retail, industrial, commercial, manufacturing, warehousing, gymnasium and any other large interior spaces that require uplight or adaptability. DesignLights Consortium® (DLC) PREMIUM Qualified for energy rebates.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.9"15.7"L: 14.5"23"30.8"H: 1.9"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KField Select CCT
- CRI80
- Watt(Approx)70-110 W110-180 W180-260 W285-340 Wswitchable
- Lumens(Approx)12000-18000 Lm24000-30000 Lm32000-48000 Lm50000-60000 Lmswitchable
- OpticsDirectDirect/IndirectGeneral DiffusedVolumetricAisle/Shelves Beam
- AdjustableAdjustable
- Dimming
- Controls/NetworkBluetoothIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*T24*
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
