Titan LED

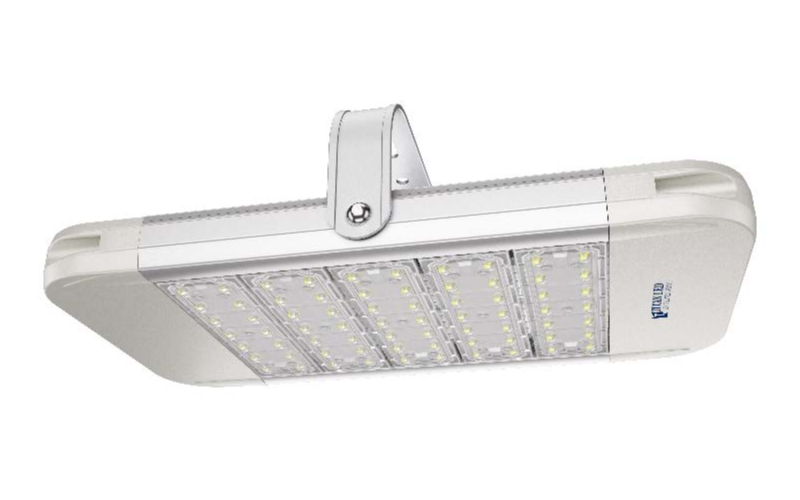

Hennessy Elite II High Bay.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

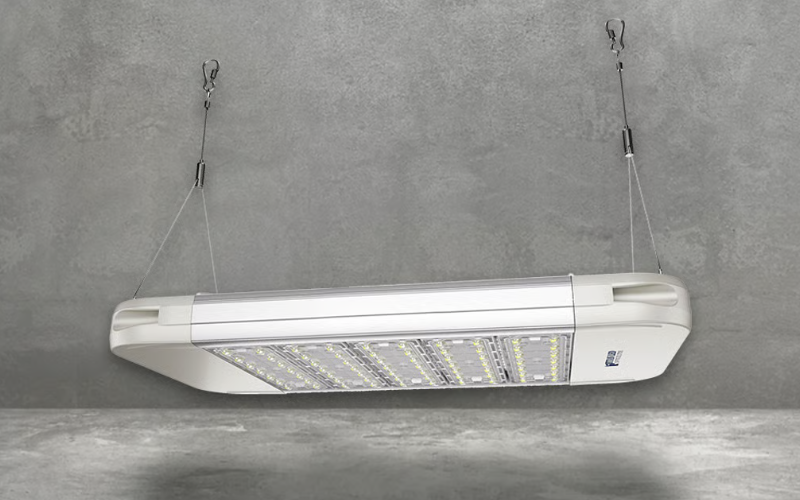

The Hennessy Elite II offers unmatched versatility with customizable options to fit any industrial or commercial space - indoors or out. Choose from cable or bracket mounting, and configure the fixture with 3 or 5 LED panels to achieve the ideal light output. Whether you’re lighting a warehouse, retail space, or parking lot, the Hennessy Elite II provides the flexibility to meet your specific lighting needs efficiently and effectively.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.5"L: 17.5"23.25"H: 2.75"
- Light SourceLED
- CCT/Color5000K
- CRI70
- Watt(Approx)103.6 W130 W160 W200 W230 W261.5 W
- Lumens(Approx)20259 Lm25220 Lm30240 Lm39000 Lm44414 Lm49763 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V480V
- Integral Emergency
- Lumen Maintenance150000 h
- CertificatesUL/CULT24*RoHS
- EnvironmentIP66
- Mounting TypePendantBrackets
- Housing
- Housing Depth
