Targetti

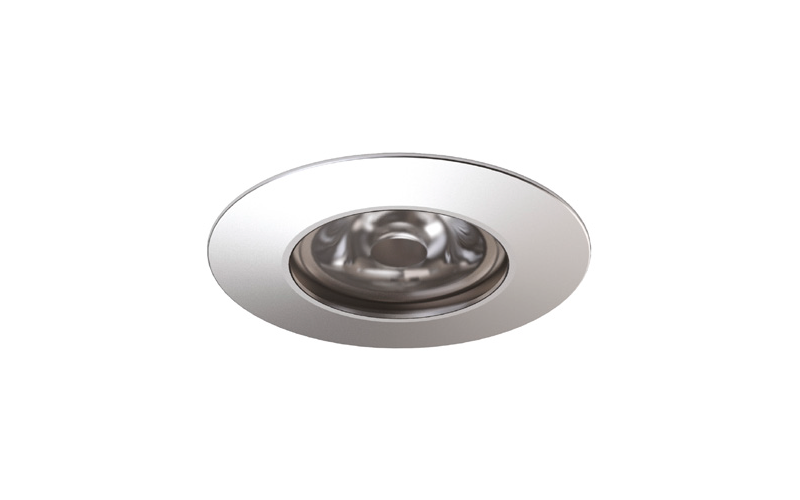

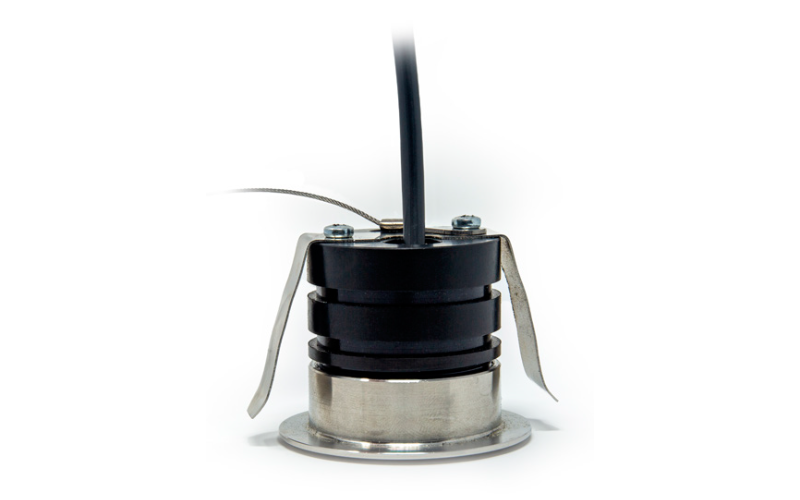

JMD. JUPITER MINI DOWNLIGHT 2'' Professional LED.
Configure
Add to project
RESOURCES
DESCRIPTION
JUPITER MINI has a lenticular type optic that makes it possible to obtain defined, precise beams. The beveled trim features no visible screws or hardware. It is easy to install and has a minimal installation depth. Equipped with an optional hex louver or an asymmetrical louver. Also available in an ingrade and projector version.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2”L: 2”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)3 W
- Lumens(Approx)161 Lm
- OpticsDirectMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULRoHS
- EnvironmentIP69K High-Pressure/Steam-Jet Cleaning
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingWood
- HousingNew Construction
- Housing Depth1.61 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeJMD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
