Targetti
SOL. VADER SOLO All-in-One Extremely Adjustable Flood Light Projector.
 Configure
 Add to project
DESCRIPTION

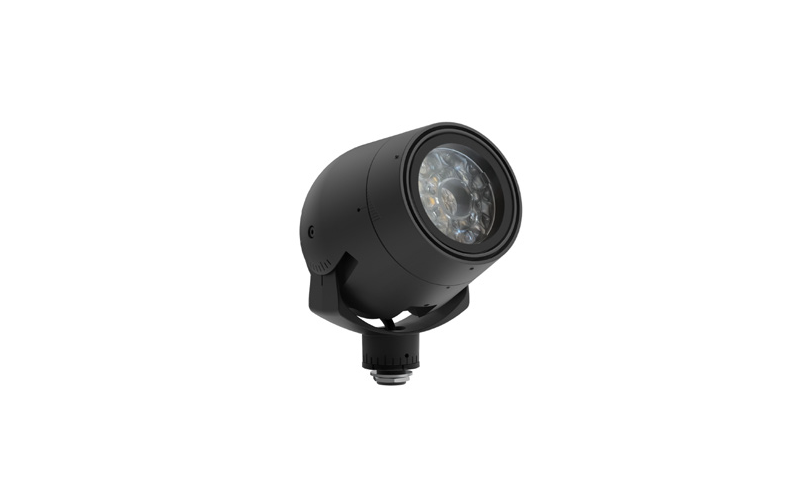

Introducing VADER — the all-in-one modular floodlight projector engineered for maximum versatility.
VADER offers comprehensive flexibility across optical distributions, static white color temperatures, and mounting configurations, ensuring precise adaptation to diverse project requirements. Featuring a 5″ diameter aperture, this compact projector enables straightforward integration into virtually any environment. Its distinct vaso-style housing is optimized for superior thermal management, supporting sustained lumen output and long-term reliability. Designed for field adjustability, VADER’s palm-sized form factor allows effortless on-site aiming and focus.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5.03"
    L: 5.98"
    H: 6.89"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3500K4000K
  • CRI
    90 80
  • Watt(Approx)
    15 W26 W35 W
  • Lumens(Approx)
    2588 Lm3572 Lm5819 Lm
  • Optics
    DirectAdjustable Optics
  • Adjustable
    Adjustable
  • Dimming
    Dim to <1%eldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    100000 h
  • Certificates
    UL/CULRoHS
  • Environment
    IP66Marine
  • Mounting Type
    Ground Spike/StakeSurfaceFloorTree StrapBaseBrackets
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
