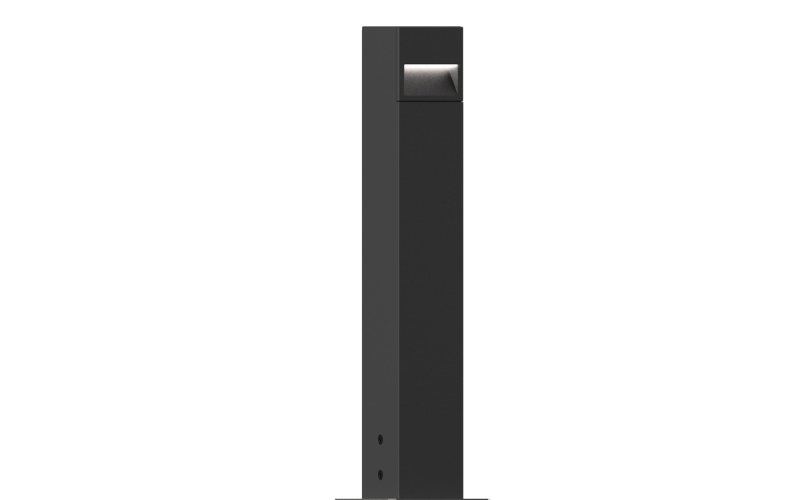

ZES. ZEDGE MINI BOLLARD Miniature LED Bollard.
Configure
Add to project
RESOURCES
DESCRIPTION
ZEDGE MINI BOLLARD is a small scale bollard luminaire with a minimalist design and compact size with a hidden LED source for visual comfort. Crafted with a specially designed linear LED module, ZEDGE delivers uniform lighting illumination. The design has been reduced its core with its minimal proportion and nuanced scale for installation in landscaping environments. The relationship between the vertical face and angled illuminated surface defines a discrete product that creates a strong architectural statement. Designed in collaboration with Gensler.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 2.5"H: 15.87"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI84
- Watt(Approx)6 W
- Lumens(Approx)38 Lm40 Lm41 Lm42 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULDark SkyT24*RoHS
- EnvironmentIP66Marine
- Mounting TypeBollard
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeZES-M
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
