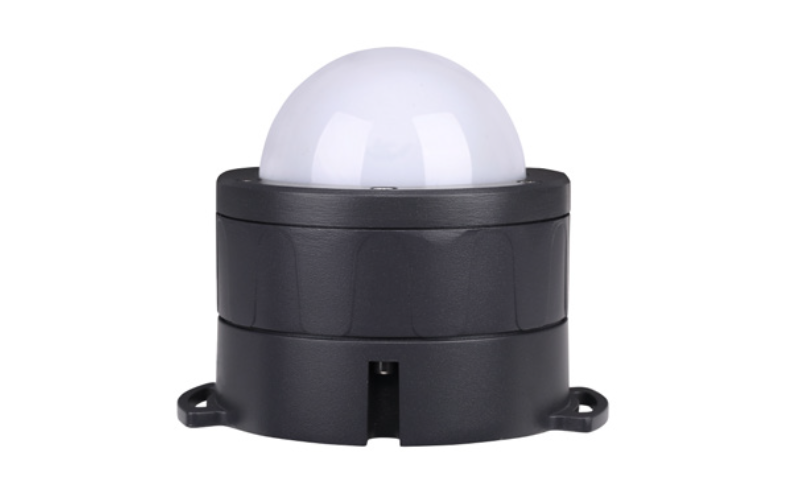

PP.X1. ProPoint Pixel White + Color Diffused Dome.
Configure
Add to project
RESOURCES
DESCRIPTION
The PROPOINT Pixel White + Color Diffused Dome is an AC Line powered, high brightness, exterior luminaire. The luminaire is controllable via DMX512, and is connected using a daisy chain topology, allowing easy installation to form long run lengths. Remote Device Management (RDM) circuits are built into each luminaire which enables extensive control and monitoring of the entire installation. The PROPOINT Pixel White + Color Diffused Dome has a low-profile and is ideal for many types of exterior architectural, retail, and hospitality façade accents or to provide powerful punch in media applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.7"L: 5.7"H: 4.8"
- Light SourceLED
- CCT/Color3000K4000K
- CRI
- Watt(Approx)20 W
- Lumens(Approx)801 Lm
- OpticsDirectGeneral DiffusedDirect View
- Adjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance81000 h
- CertificatesETLRoHS
- EnvironmentIP66
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePPP-SWSC-DD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
