Traxon e:cue, Member of Prosperity Group
PRG.MB. Pixel Ribbon Plus Multi Bend.
Configure
Add to project
RESOURCES
DESCRIPTION

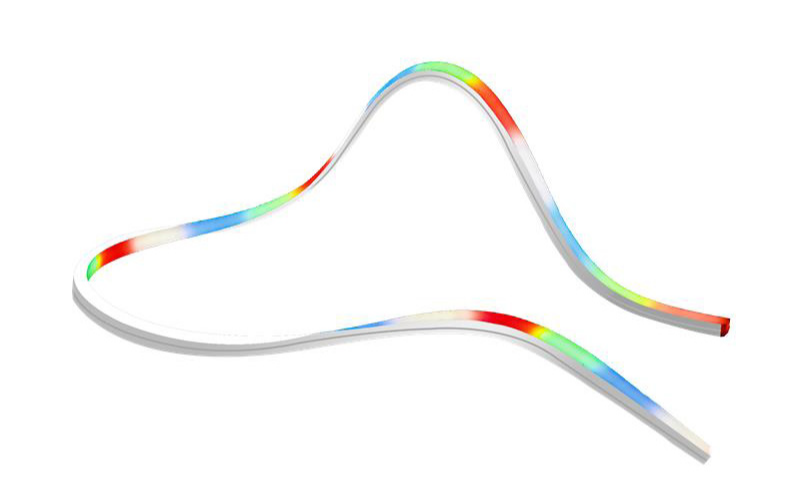

Traxon Pixel Ribbon Plus is a flexible, IP67‑rated LED strip engineered as a durable outdoor alternative to neon. Designed for architectural and façade applications, the series includes Multi Bend options that easily follow curves and complex structures. With individually controllable pixels, a 4 in / 100 mm pixel pitch, and an open beam that delivers smooth, uniform illumination, Pixel Ribbon Plus is ideal for high‑impact, full‑color lighting displays. The range is available in multiple colors and CCTs, offers a variety of mounting solutions, and can be specified in custom lengths to suit diverse project requirements.
- Bending on both the X & Y Axis
- 4" / 100mm Pixel Pitch and Cutting Interval
- DMX Controlled
- Cable feed options from Bottom, Side and End
- IP67 & Suitable for Coastal Environment
- ANSI 3G Vibration rated and IK08 impact rated
- 24v DC
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.79"L: 14"
- Light SourceLED
- CCT/Color2700K3000K4000KTunable WhiteRGBRGBW
- CRI80
- Watt(Approx)2.9 W/Ft4.3 W/Ft3.4 W/Ft
- Lumens(Approx)79 Lm/Ft136 Lm/Ft199 Lm/Ft212 Lm/Ft198 Lm/Ft192 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRG-MB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
