Traxon e:cue, Member of Prosperity Group
PRG.O1. Ribbon Plus Graze TB.
Configure
Add to project
RESOURCES
DESCRIPTION

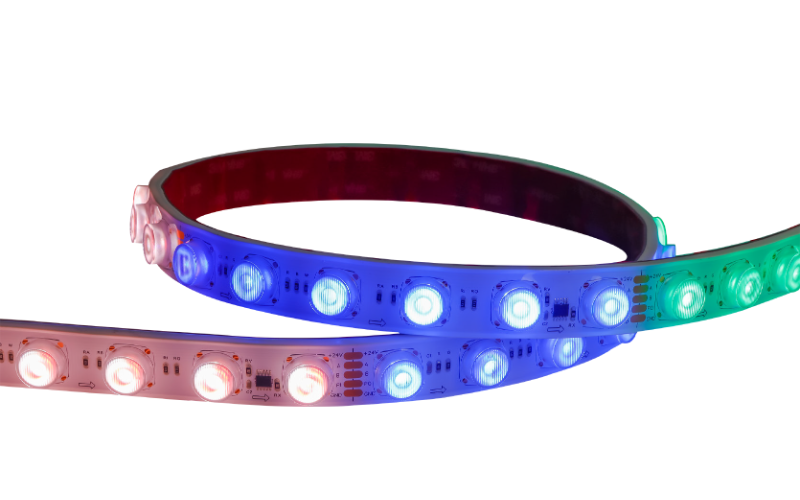

The Ribbon Plus Graze TB is an IP67-rated flexible LED strip designed for both wall washing and decorative landscape lighting. It can be directly controlled via DMX512 for seamless integration into professional lighting setups.
- Top Bending and Multi-Bending models
- DMX Controlled
- Cable feed options from Bottom, Side and End
- IP67 & Suitable for Coastal Environment
- ANSI 3G Vibration rated and IK07/IK08 impact rated
- 24v DC
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1"L: 14"H: 0.4"
- Light SourceLED
- CCT/Color2700K3000K4000KRGBW
- CRI80
- Watt(Approx)6 W/Ft
- Lumens(Approx)337 Lm/Ft540 Lm/Ft558 Lm/Ft594 Lm/Ft
- OpticsDirectGrazingFlood
- Adjustable
- DimmingDim to 3-10%DMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRG-O1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
