VI.PL. Vista Plus HO Midi White.
Configure
Add to project
RESOURCES
DESCRIPTION

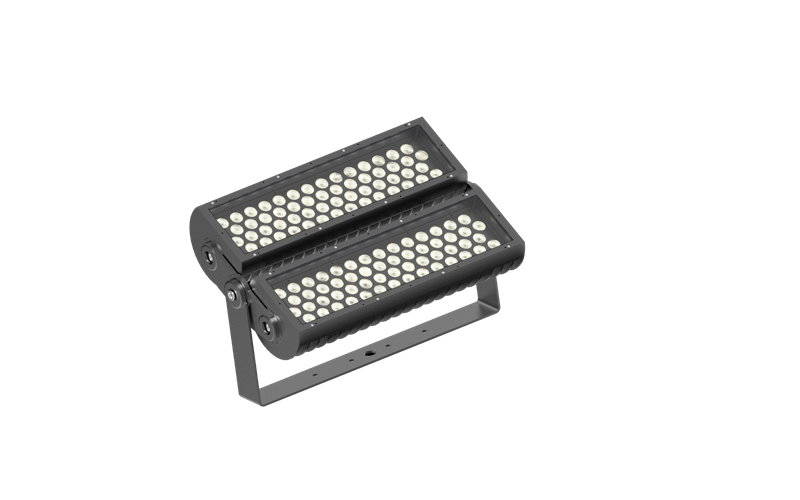

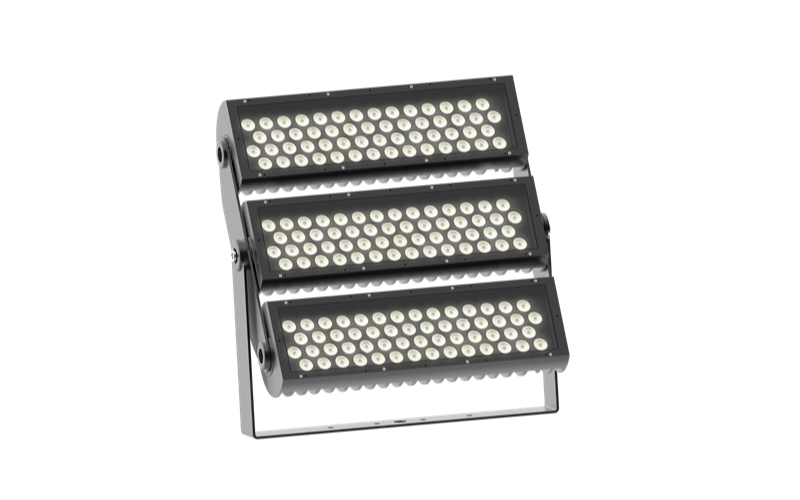

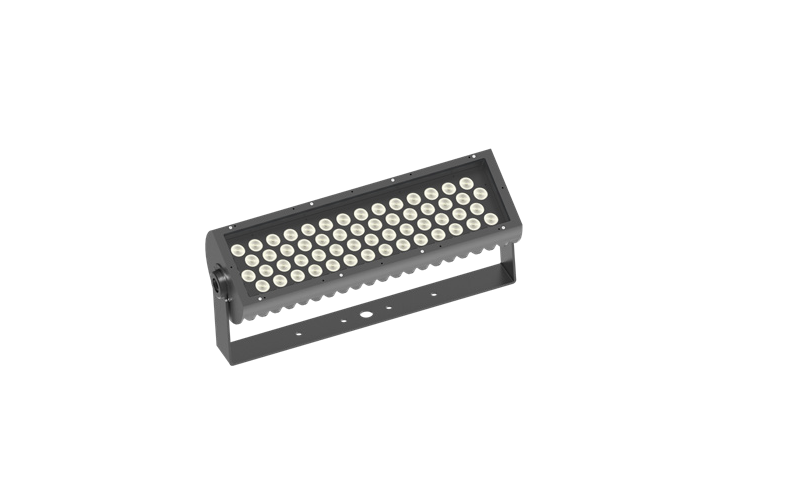

The Vista Plus HO Midi White is an AC line powered, high brightness luminaire. Controllable with DMX512, the Vista Plus HO Midi White is a new member of the Vista Plus family, offering 200W per head with 1-head, 2-head and 3-head options. The daisy chain topology, and direct-wire nature of the fixture via the two integral cable whips allow for simple installation into existing installations and new structures, and is ideal for high-rise and tower illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.7"L: 25.6"27"27.3"H: 11.3"18.9"28"
- Light SourceLED
- CCT/Color3000K4000K5700K6500KTunable White
- CRI90
- Watt(Approx)200 W
- Lumens(Approx)21000 Lm
- OpticsDirectNarrow
- AdjustableAdjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance81000 h
- CertificatesETL
- EnvironmentIP66
- Mounting TypeBrackets
- Housing
- Housing Depth
