Traxon e:cue, Member of Prosperity Group
VI.PL. Vista Plus Maxi White.
Configure
Add to project
RESOURCES
DESCRIPTION

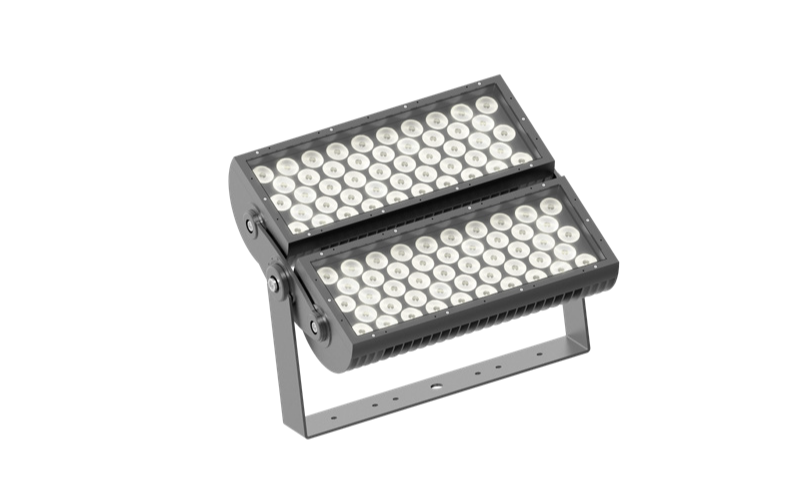

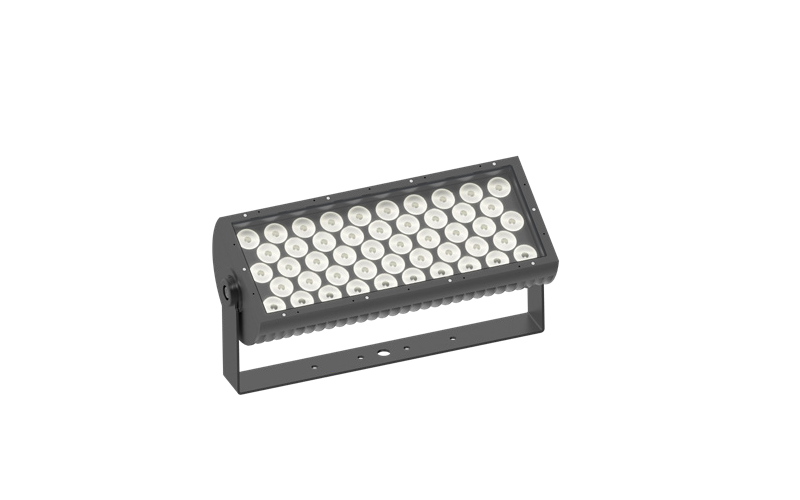

The Vista Plus Maxi White is an AC line powered, high brightness luminaire. Controllable with DMX512, the Vista Plus Maxi White is a new member of the Vista Plus family, offering 200W per head with 1-head, 2-head options. The daisy chain topology, and direct-wire nature of the fixture via the two integral cable whips allow for simple installation into existing installations and new structures, and is ideal for high-rise and tower illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.8"L: 26.7"29.1"H: 13.9"22.3"
- Light SourceLED
- CCT/Color3000K4000K5700K6500KTunable White
- CRI90
- Watt(Approx)200 W
- Lumens(Approx)22000 Lm
- OpticsDirectNarrow
- AdjustableAdjustable
- DimmingDim to 3-10%DMX/RDM
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance81000 h
- CertificatesETL
- EnvironmentIP66
- Mounting TypeBrackets
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
