USAI Lighting
6254. BeveLED 5.0 COLOR SELECT WALL WASH.
Add to project
RESOURCES
DESCRIPTION

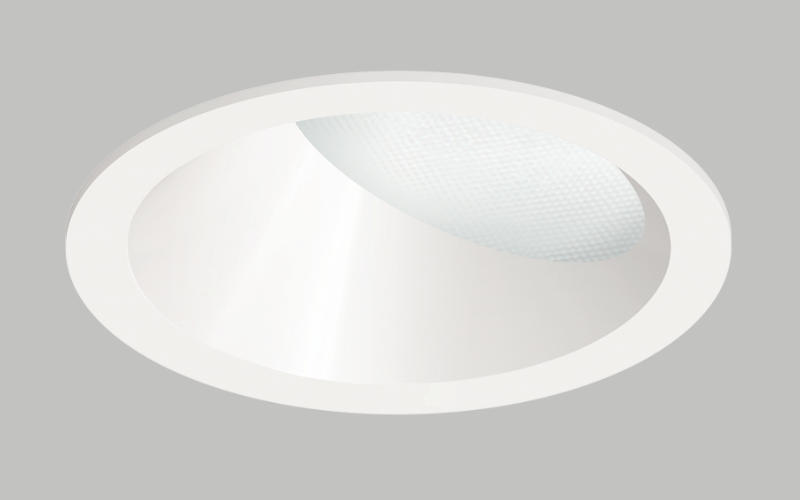

BeveLED 5.0 Recessed Wall Wash with Color Select - Independent color temperature and intensity control for LED lighting. Color Select® represents the next innovation in color temperature control for advanced LED recessed downlighting, providing tunable white light color temperatures from 6000K down to 2200K with dimmable output. Color Select interfaces with standard dimming and control systems to achieve ultimate control over the quality of light in a space with a single fixture type.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7"L: 7"
- Light SourceLED
- CCT/ColorTunable White
- CRI80
- Watt(Approx)40 W60 W
- Lumens(Approx)1775 Lm2325 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAIBEW
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth9 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time6254
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
