USAI Lighting

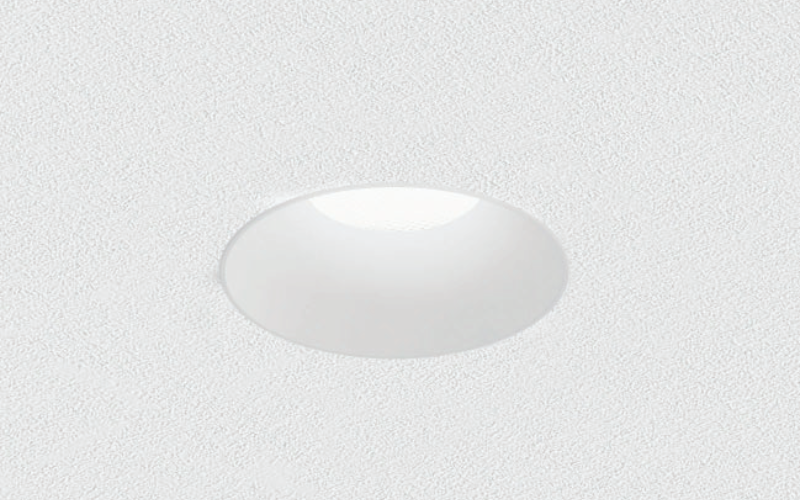

B3RAP. BeveLED Mini Trimless Acoustical - 3” Round Adjustable For Use With 3.5” Pre-cut Ceiling Tiles.
 Add to project
USAI Lighting.
USAI Lighting.
USAI Lighting. B3RAP. B3RAP Round BeveLED Mini Trimless Acoustical Lighting Adjustable.
RESOURCES
DESCRIPTION

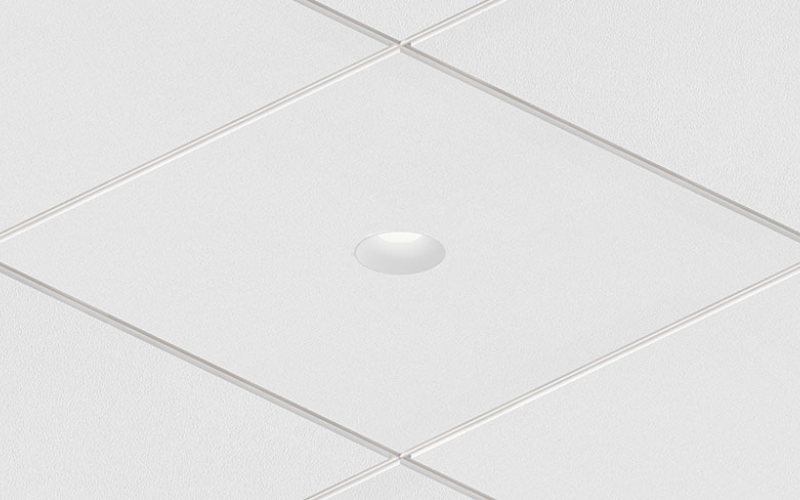

Introducing Trimless Acoustical Lighting A sheetrock-looking solution for acoustical ceiling tiles. Perfectly centered fi xtures, perfectly cut tiles – Everytime.


  • The clean, minimal trimless appearance of sheetrock in acoustical tiles.
  • No cutting. No mess. No mistakes. And less labor.
  • Proprietary tool-less mounting system.
  • Trimless tile housings perfectly self-center in pre-cut tiles.
  • Seismically rated for D, E, and F areas.
  • USAI’s Trimless Acoustical Lighting products must be used exclusively with pre-cut ceiling tiles by Armstrong® Ceiling Solutions
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3"
    L: 3"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable White
  • CRI
    80 90 95
  • Watt(Approx)
    9 W15 W12 W20 W18 W
  • Lumens(Approx)
    738 Lm648 Lm662 Lm723 Lm725 Lm904 Lm894 Lm787 Lm1011 Lm1380 Lm
  • Optics
    DirectMediumFloodWide Flood
  • Adjustable
    Hot Aiming
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron EcoSystem HLutron Hi-lume Premier Eco (PEQ0)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
  • Controls/Network
    Lutron®Wireless Dimming
  • Power/Voltage
    IntegralUNV 120-277V120V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWDeclareBAA
  • Environment
    Acoustic AbsorptionAntimicrobial FinishWet
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
    5 1/2 ''7 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
