USAI Lighting

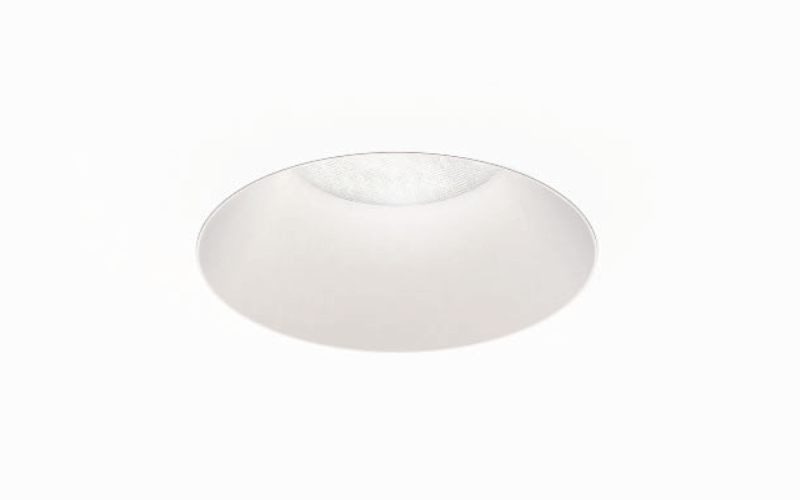

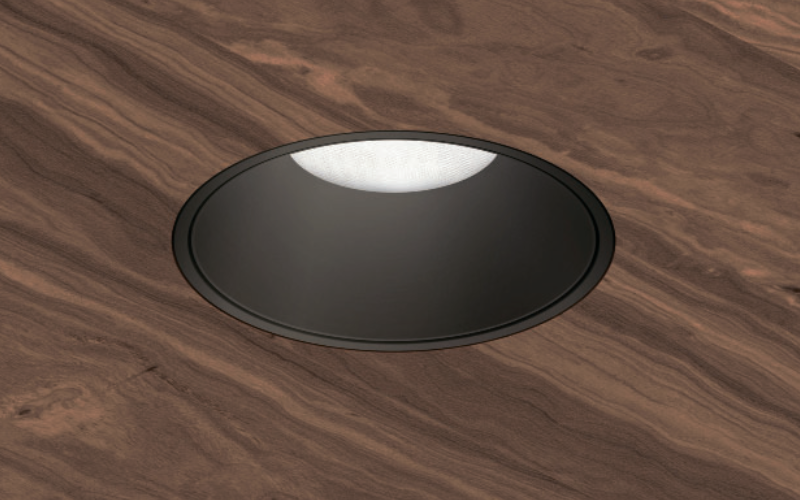

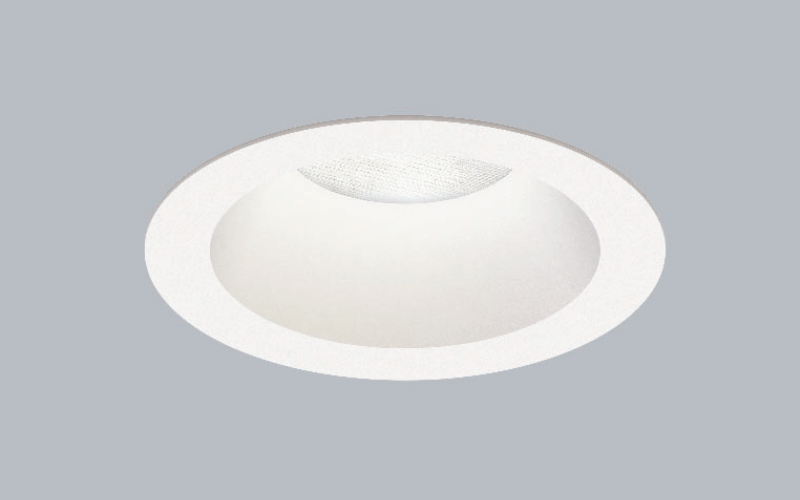

B3RD. BeveLED Mini Wtec 3” Round Downlight PoE Ready with Remote Driver.
Add to project
RESOURCES
DESCRIPTION
USAI’s comprehensive BeveLED Mini product platform is now available with PoE technology. USAI collaborates with Wtec smartengine to deliver the advantage of a tried and tested connected lighting system solution. Satisfy new IP-based lighting specifi cation requirements with the high quality and performance USAI Lighting is known for, and the low voltage power distribution and data control connected projects demand.
- Plug-and-play system architecture with Wtec smartengine system compatibility
- Field Flexibility - it’s now easy to change trim in the fi eld between trimmed, trimless and millwork
- Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
- Clear overspray protector for installation convenience
- Full family platform
- Iconic beveled look
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"3"3 1/2"L: 4"3"3 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90 95
- Watt(Approx)9 W15 W20 W
- Lumens(Approx)925 Lm1425 Lm1950 Lm
- OpticsDirectFloodWide Flood
- Adjustable
- Dimming
- Controls/NetworkEthernet
- Power/VoltagePoE
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWDeclare
- EnvironmentDampShowerWet
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingWoodStone/Tile
- HousingNew ConstructionChicago Plenum
- Housing Depth2 ''4 ''5 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB3RD-POE-RM-W
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
