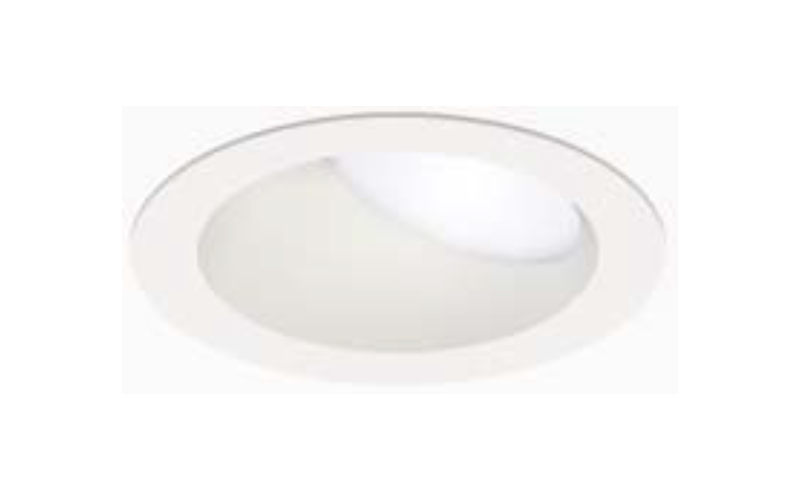

B3RW-L2-T24. BeveLED Mini Basic T24 3'' Round Wall Wash.
Add to project
RESOURCES
DESCRIPTION
Introducing BeveLED Mini Basic T24, our newest LED downlight to deliver consistently classic white light with the same below ceiling appearance as our BeveLED
Mini product line.
Mini product line.
- CEC T24 2016 JA8 qualifi ed
- Available in a full range of Classic White and Dim to Warm color temperature options
- Downlight, wallwash and adjustable accent confi gurations
- Dry/damp/wet location rated for bathrooms and showers
- All of USAI’s dimming driver options including 0-10V, digital, and phase dimming

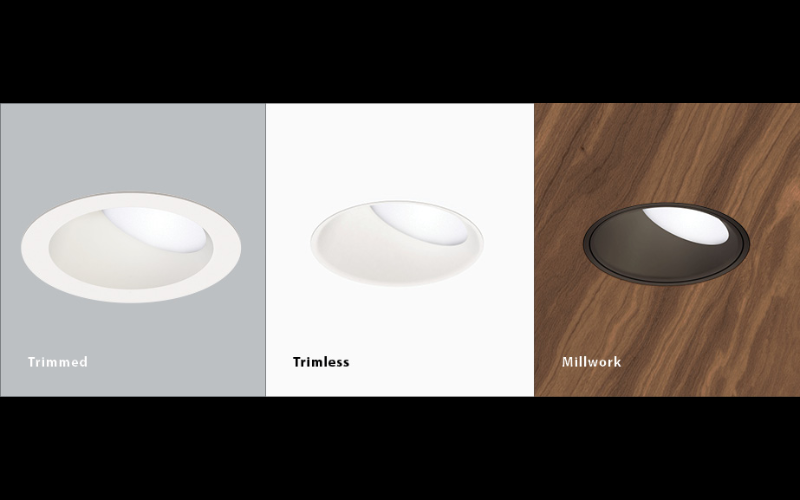

- All housings are fi eld convertible from trimless or millwork to trimmed installations in the fi eld
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"3"3 1/2"L: 4"3"3 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)9 W
- Lumens(Approx)468 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWT24*BAA
- EnvironmentAntimicrobial FinishDampShowerWetNatatoriumCorrosion Resistant
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingWood
- HousingIC Air Tight
- Housing Depth5 1/2 ''
