USAI Lighting
B3RW. BeveLED Mini Basic PANCAKE 3” Aperture All-In-One Adjustable with Integral Dimming Driver.
 Add to project

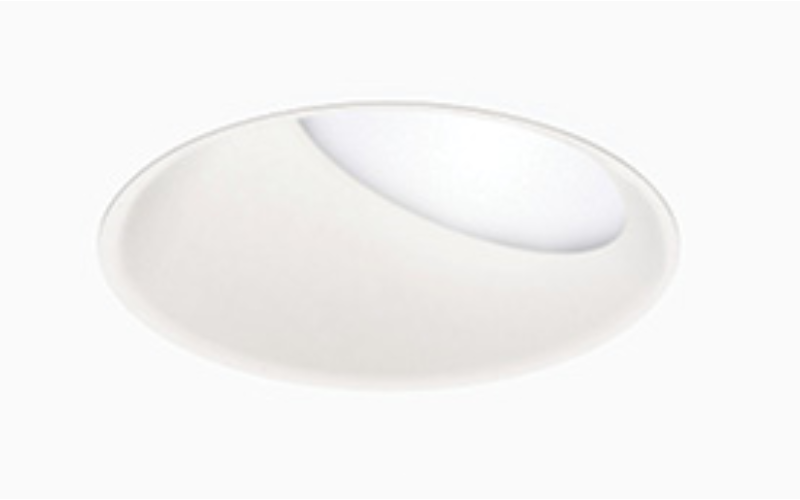

USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE 3” Aperture All-In-One Adjustable.
USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE 3” Aperture All-In-One Adjustable.
USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE 3” Aperture All-In-One Adjustable.
RESOURCES
DESCRIPTION
Introducing BeveLED Mini Basic Pancake, our newest LED downlight to deliver incredible performance and full functionality with the same below ceiling
appearace as our BeveLED Mini product line with a universally adjustable, all-in-one superfl at housing that requires less than 3” of plenum space.

FEATURES

  • Available in a full range of Classic White and Dim to Warm color temperature options
  • Universally adjustable all-in-one fi xture can perform in accent, downlight, or wall wash confi gurations with 0-40° lockable tilt and 362° rotation
  • Dry/damp/wet location rated for bathrooms and showers
  • IC-rated for direct contact with insulation with no increase to housing size
  • All of USAI’s dimming driver options including 0-10V, digital, and phase dimming
  • All housings are fi eld convertible from trimless or millwork to trimmed installations in the fi eld
  • Extremely low glare ratings with UGR < 5.5 for all adjustable beamspread confi gurations
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4"
    L: 4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    9 W15 W
  • Lumens(Approx)
    1175 Lm1100 Lm1700 Lm
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
    Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingeldoLED ECO 0-10VeldoLED SOLO DALI
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWBAA
  • Environment
    DampWetNatatoriumCorrosion Resistant
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallWood
  • Housing
  • Housing Depth
