USAI Lighting
B3RW. BeveLED Mini Basic PANCAKE -T24 3'' Round Wallwash Aperture with Remote Dimming Driver.
 Add to project

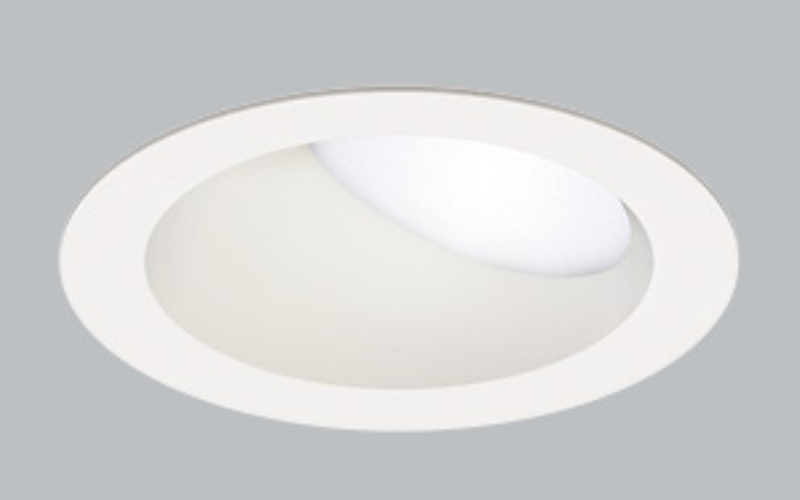

USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE -T24 3'' Round Wallwash Aperture All-In-One with Remote Dimming Driver.

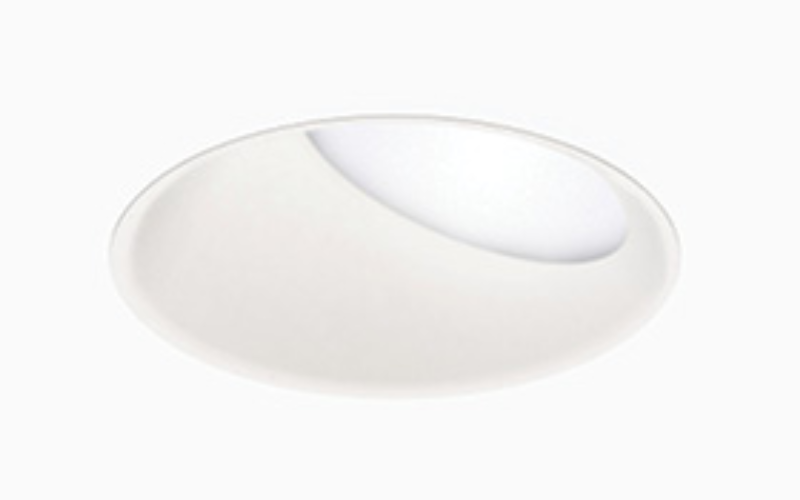

USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE -T24 3'' Round Wallwash Aperture All-In-One with Remote Dimming Driver.
USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE -T24 3'' Round Wallwash Aperture All-In-One with Remote Dimming Driver.
USAI Lighting. B3RW. BeveLED Mini Basic PANCAKE -T24 3'' Round Wallwash Aperture All-In-One with Remote Dimming Driver.
RESOURCES
DESCRIPTION
Introducing BeveLED Mini Basic Pancake, our newest LED downlight to deliver incredible performance and full functionality with the same below ceiling
appearace as our BeveLED Mini product line with a universally adjustable, all-in-one superfl at housing that requires less than 3” of plenum space.

FEATURES
  • CEC T24 2016/2019 JA8 qualified
  • Available in a full range of Classic White and Dim to Warm color temperature options
  • Universally adjustable all-in-one fi xture can perform in accent, downlight, or wall wash confi gurations with 0-40° lockable tilt and 362° rotation
  • Dry/damp/wet location rated for bathrooms and showers
  • IC-rated for direct contact with insulation with no increase to housing size
  • 0-10V and Phase dimming available with integral drivers
  • All housings are field convertible from trimless or millwork to trimmed installations in the field
  • Extremely low glare ratings with UGR < 5.5 for all adjustable beamspread configurations
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4"
    L: 4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K4000K
  • CRI
    90
  • Watt(Approx)
    9 W15 W
  • Lumens(Approx)
    975 Lm1425 Lm1100 Lm1175 Lm1700 Lm
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
    Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWT24*BAA
  • Environment
    Antimicrobial FinishDampWetNatatoriumCorrosion Resistant
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallWood
  • Housing
    IC
  • Housing Depth
    2.3 ''
