USAI Lighting

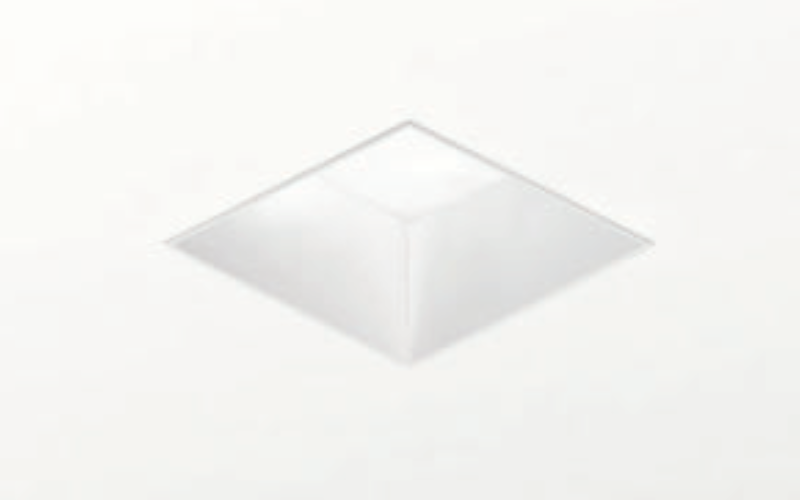

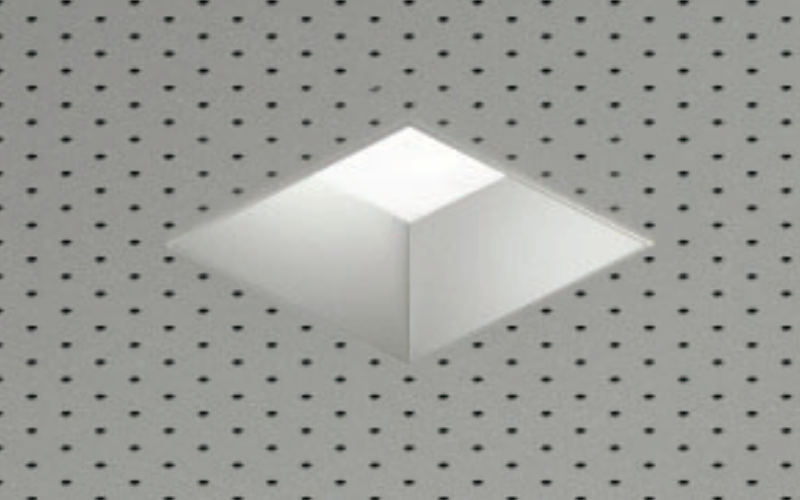

B3SDP-UA. BeveLED Mini for MetalWorks - 3'' Square Downlight with Integral Driver.
 Add to project
USAI Lighting. B3SDP-UA. BeveLED Mini® for MetalWorks - 3'' Square Downlight with Integral Driver.
USAI Lighting. B3SDP-UA. BeveLED Mini® for MetalWorks - 3'' Square Downlight with Integral Driver.
USAI Lighting. B3SDP-UA. BeveLED Mini® for MetalWorks - 3'' Square Downlight with Integral Driver.
USAI Lighting. B3SDP-UA. BeveLED Mini® for MetalWorks - 3'' Square Downlight with Integral Driver.
RESOURCES
DESCRIPTION
Introducing BeveLED Mini for MetalWorks - a trimless recessed lighting solution for metal ceiling panels. Perfectly centered fi xtures, perfectly cut panels - everytime.

  • Clean, minimal trimless appearance in metal ceiling panels.
  • No cutting. No mess. No mistakes. And less labor.
  • Proprietary tool-less mounting system.
  • Recessed lighting perfectly self-centers in pre-cut panels.
  • Seismically rated for D, E, and F areas.
  • USAI Lighting products must be used exclusively with pre-cut ceiling panels by Armstrong Ceiling Solutions.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 9/16"
    L: 3 9/16"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable White
  • CRI
    80 90 95
  • Watt(Approx)
    9 W15 W12 W20 W18 W
  • Lumens(Approx)
    791 Lm944 Lm795 Lm949 Lm1236 Lm1473 Lm1057 Lm1429 Lm1074 Lm2009 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3-wire (L3D)Lutron EcoSystem HeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
  • Controls/Network
    Lutron®Wireless Dimming
  • Power/Voltage
    IntegralUNV 120-277V120V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWDeclareBAA
  • Environment
    Antimicrobial FinishWet
  • Mounting Type
    Ceiling RecessedMetal Panel
  • Housing
    New Construction
  • Housing Depth
    4 3/8 ''5 1/2 ''6 3/4 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
