USAI Lighting

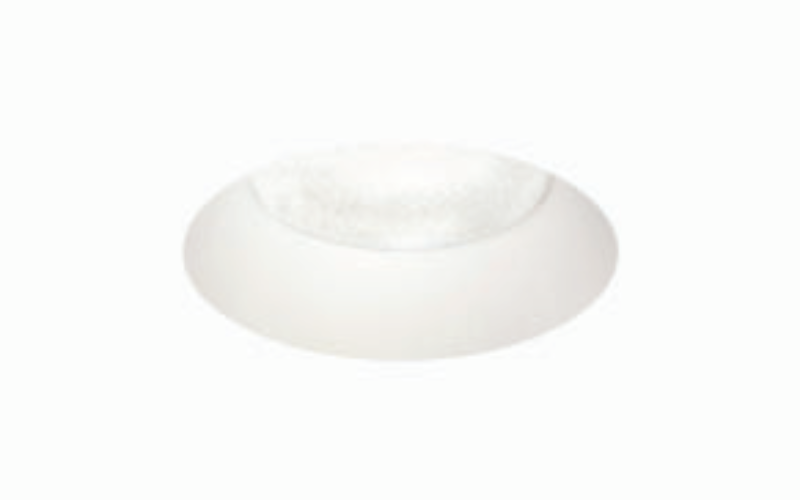

B4RD-POE. BeveLED 2.2 - 4.5” Round Downlight - PoE Ready with Integral Driver Housings.
Add to project
RESOURCES
DESCRIPTION
USAI’s comprehensive BeveLED 2.2 product platform is now available with PoE technology. USAI collaborates with Molex to deliver the advantage of a tried and tested reliable PoE system solution. Satisfy new IP-based lighting specifi cation requirements with the high quality and performance USAI Lighting is known for, and the low voltage power distribution and data control PoE projects demand.
- Plug-and-play system architecture with integrated Molex CoreSync PoE driver
- Field Flexibility - it’s now easy to change trim in the fi eld between trimmed, trimless and millwork
- Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
- Clear overspray protector for installation convenience
- Full family platform
- Iconic beveled look
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/2"4 11/16"4 7/8"L: 5 1/2"4 11/16"4 7/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)9 W12 W16 W24 W
- Lumens(Approx)775 Lm1025 Lm1375 Lm1925 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 1%
- Controls/NetworkEthernet
- Power/VoltagePoE
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWDeclare
- EnvironmentDampShowerWet
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingWoodStone/Tile
- HousingNew ConstructionChicago Plenum
- Housing Depth2 7/8 ''4 3/4 ''6 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB4RD-POE
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
