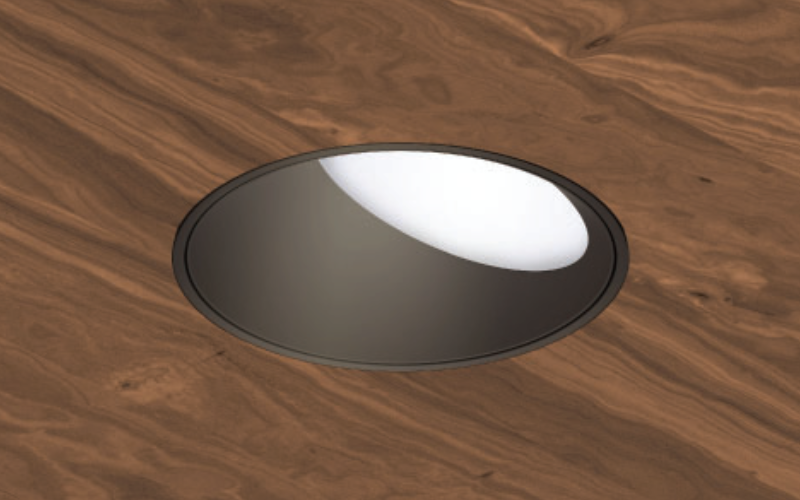

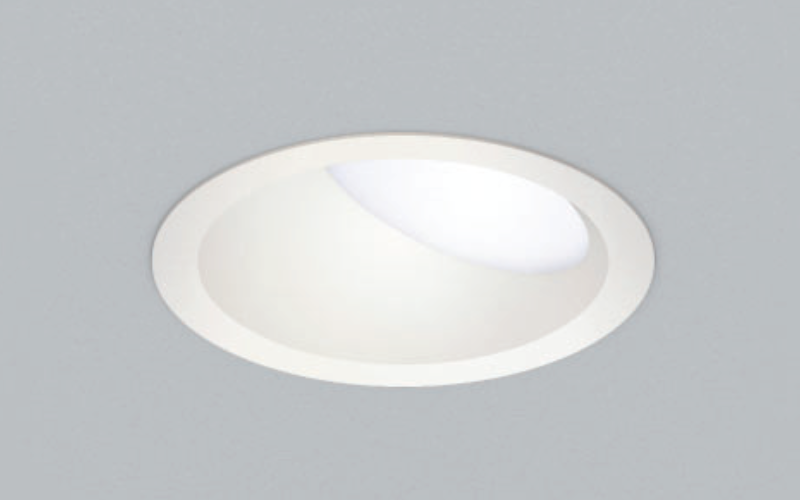

B4RW. 4.5” Round Wall Wash - BeveLED 2.2 Complete.
Add to project
RESOURCES
DESCRIPTION
- Field Flexibility between trimmed, trimless and millwork
- Dry/damp/wet location rated for bathrooms and showers,
- including trimless and millwork
- 1% dimming standard + more dimming options
- Clear overspray protector for installation convenience
- Full family platform
- Iconic beveled look
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/2"4 11/16"4 7/8"L: 5 1/2"4 11/16"4 7/8"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable White
- CRI80 90
- Watt(Approx)9 W12 W16 W24 W33 W36 W32 W
- Lumens(Approx)750 Lm650 Lm675 Lm850 Lm1125 Lm1100 Lm1575 Lm1975 Lm2525 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem HeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/NetworkLutron®Wireless Dimming
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAIBEWDeclareBAA
- EnvironmentAntimicrobial FinishDampShowerWetNatatoriumCorrosion Resistant
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingWoodStone/Tile
- HousingNew Construction
- Housing Depth2 7/8 ''3 11/16 ''4 3/4 ''6 7/8 ''8 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB4RW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
