USAI Lighting
B4SCP. BeveLED 2.2 for Turf Design 4.5” Square Deep Regress Downlight.
Add to project
RESOURCES
DESCRIPTION

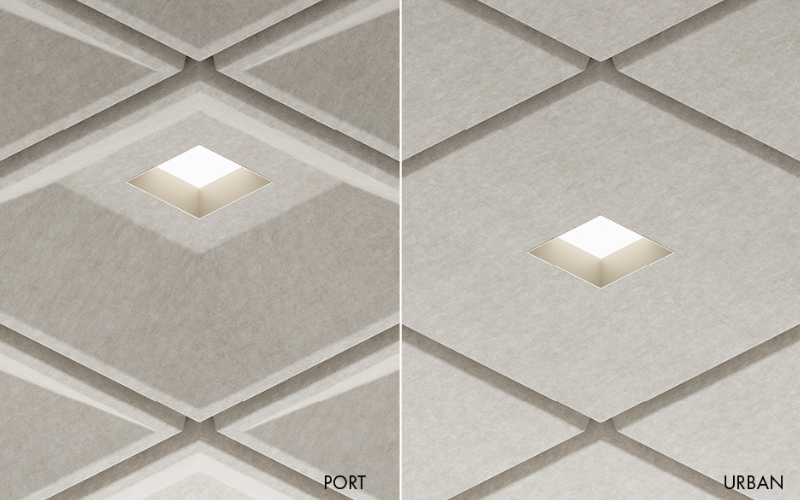

Introducing BeveLED 2.2 for Turf Design's Port and Urban Ceiling Tiles - a trimless recessed lighting solution. Perfectly centered fixtures, perfectly pre-cut tiles - everytime.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 15/16"L: 4 15/16"H: 2.5"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable White
- CRI80 90
- Watt(Approx)9 W12 W16 W24 W33 W36 W32 W
- Lumens(Approx)675 Lm900 Lm950 Lm875 Lm1175 Lm1650 Lm1600 Lm1575 Lm2075 Lm2950 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron Hi-Lume 2-wire (LTEA)Lutron Hi-Lume 3-wire (L3D)Lutron EcoSystem HeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/NetworkLutron®Wireless Dimming
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAIBEWDeclareBAA
- EnvironmentAcoustic AbsorptionAntimicrobial FinishWet
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth8 1/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB4SCP-SQ
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
