USAI Lighting

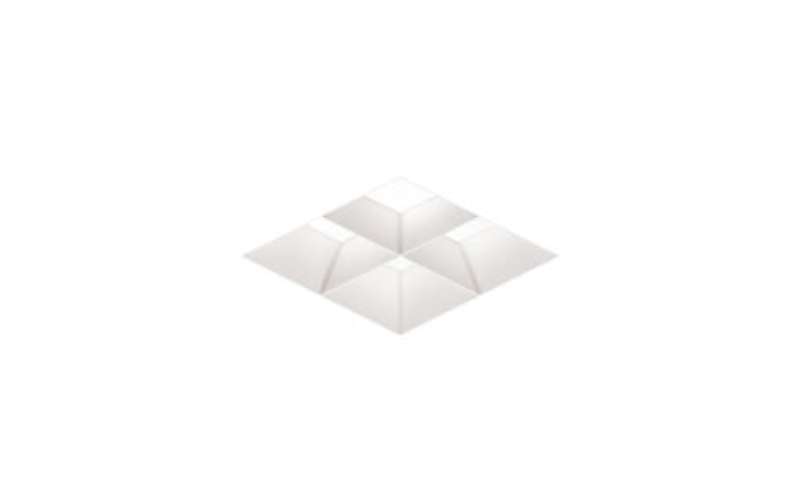

B4SD. BeveLED 2.2 Basic 4.5” Square Downlight Cross Baffle.
Add to project
RESOURCES
DESCRIPTION
FEATURES
- Field Flexibility between trimmed, trimless and millwork
- Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
- 1% dimming standard + more dimming options
- Clear overspray protector for installation convenience
- Iconic beveled look with optional cross-baffl e trim for glare control
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 1/2"4 11/16"L: 5 1/2"4 11/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)9 W12 W16 W24 W
- Lumens(Approx)750 Lm1075 Lm1500 Lm2250 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron EcoSystem HeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/NetworkLutron®Wireless Dimming
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesCSAIBEWBAA
- EnvironmentAntimicrobial FinishDampShowerWetNatatoriumCorrosion Resistant
- Mounting TypeCeiling RecessedMillwork RecessedDrywallT-Grid CeilingWoodStone/Tile
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth4 3/4 ''6 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeB4SD-G1-CB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
