B4SW-POE. BeveLED 2.2 - Molex 4.5'' Square Wall Wash - PoE Ready with Integral Driver Housings.
 Add to project

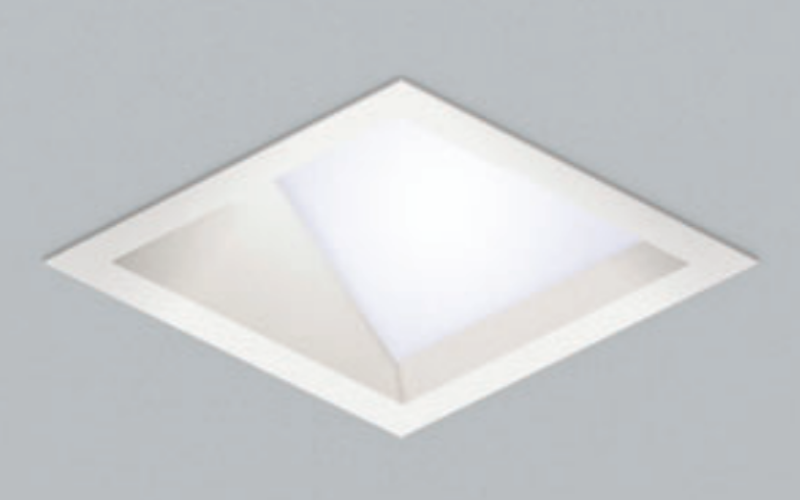

USAI Lighting. B4SW-POE. BeveLED 2.2 - Molex 4.5'' Square Wall Wash - PoE Ready with Integral Driver Housings.

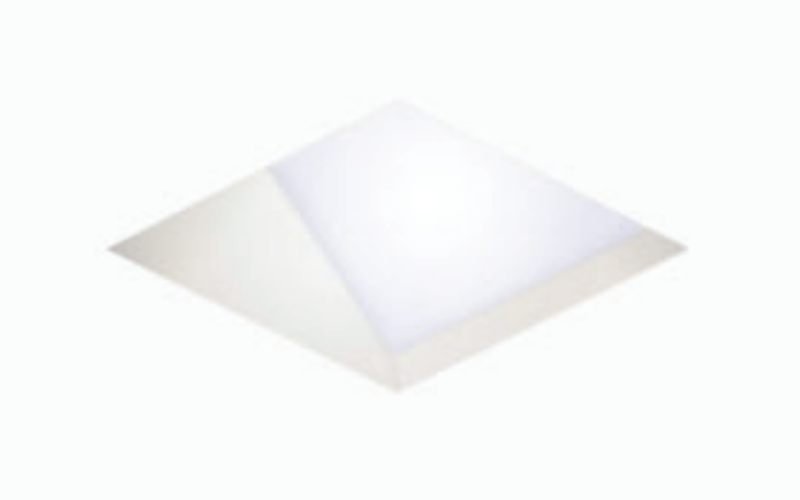

USAI Lighting. B4SW-POE. BeveLED 2.2 - Molex 4.5'' Square Wall Wash - PoE Ready with Integral Driver Housings.

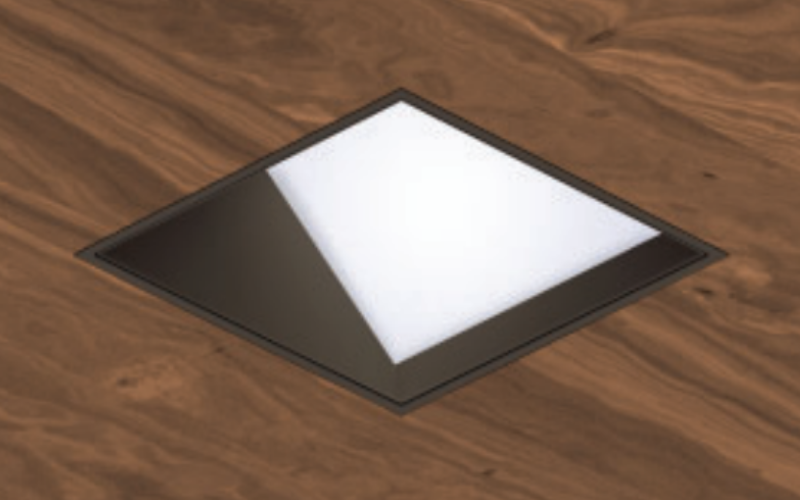

USAI Lighting. B4SW-POE. BeveLED 2.2 - Molex 4.5'' Square Wall Wash - PoE Ready with Integral Driver Housings.
USAI Lighting. B4SW-POE. BeveLED 2.2 - Molex 4.5'' Square Wall Wash - PoE Ready with Integral Driver Housings.
RESOURCES
DESCRIPTION
USAI’s comprehensive BeveLED 2.2 product platform is now available with PoE technology. USAI collaborates with Molex to deliver the advantage of a tried and tested reliable PoE system solution. Satisfy new IP-based lighting specifi cation requirements with the high quality and performance USAI Lighting is known for, and the low voltage power distribution and data control PoE projects demand.


  • Plug-and-play system architecture with integrated Molex CoreSync PoE driver
  • Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
  • Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
  • Clear overspray protector for installation convenience
  • Full family platform
  • Iconic beveled look
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5 1/2"4 11/16"4 7/8"
    L: 5 1/2"4 11/16"4 7/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    9 W12 W16 W24 W
  • Lumens(Approx)
    675 Lm750 Lm1000 Lm1400 Lm
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 1%
  • Controls/Network
    Ethernet
  • Power/Voltage
    PoE
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWDeclareBAA
  • Environment
    DampShowerWet
  • Mounting Type
    Ceiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingWoodStone/Tile
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
    2 7/8 ''4 3/4 ''6 7/8 ''
