USAI Lighting

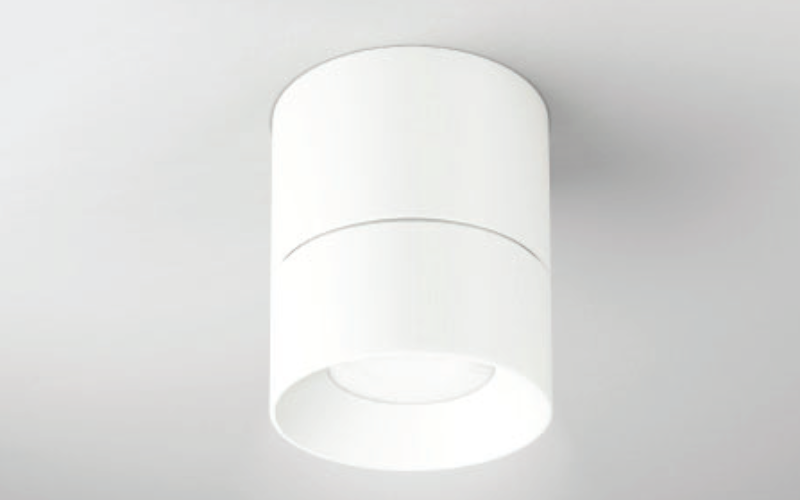

BLRD5-T24. BeveLED BLOCK T24 Downlight.
Add to project
RESOURCES
DESCRIPTION
Keep ceiling height right where it is! Specifi cally designed to work with surface-mounted conduit and junction boxes, BeveLED BLOCK has a modern look that’s perfect for lofts, offi ces, and open architectural spaces. Also available with solid-sides styling shown above, Block also creates a fi nished look when recessed conduit is possible.
- CEC T24 2016 JA8 qualified
- High performance architectural lighting solution for industrial or exposed concrete ceiling types where recessed lighting is not an option
- Convenient conduit cutouts provide access for surface-mounted conduit to pass through the luminaire
- Smooth, modular solid and keyhole slots are interchangeable and user confi gurable to allow for simple on site customization in the field.
- Industry leading illumination and craftsmanship
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 13/16"L: 5 13/16"H: 5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)9 W12 W16 W24 W
- Lumens(Approx)900 Lm1025 Lm1350 Lm1875 Lm
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VeldoLED ECO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWT24*BAA
- EnvironmentDamp
- Mounting TypeCeiling SurfaceConduit Box
- Housing
- Housing Depth
