BLSW5-T24. BeveLED BLOCK T24 Wall Wash — Pendant.
Add to project
RESOURCES
DESCRIPTION

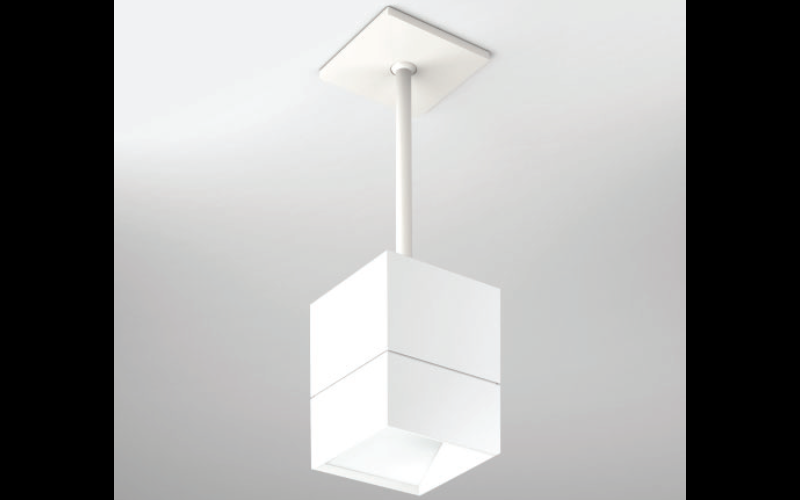

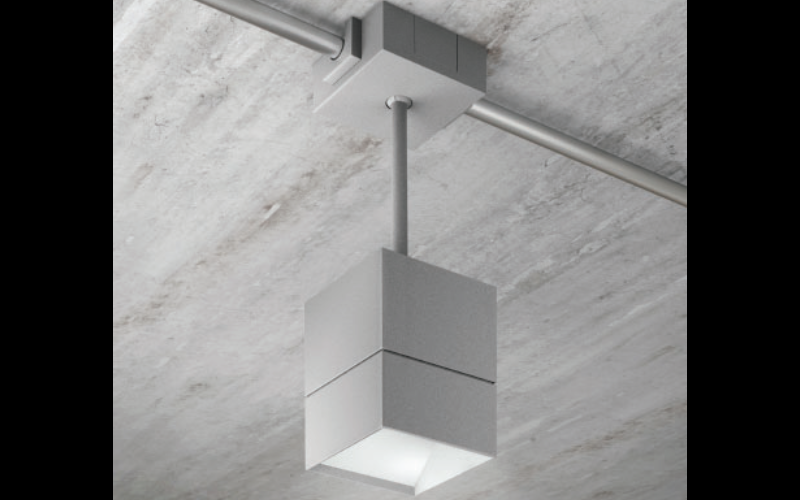

Keep ceiling height right where it is! Specifi cally designed to work with surface-mounted conduit and junction boxes, BeveLED BLOCK has a modern look that’s perfect for lofts, offi ces, and open architectural spaces. Also available for traditional ceilings as shown above, Block creates a finished look when recessed junction boxes are available.
- CEC T24 2016 JA8 qualified
- High performance architectural lighting solution for industrial or exposed concrete ceiling types where recessed lighting is not an option
- Convenient conduit cutouts provide access for surface-mounted conduit to pass through the canopy
- Smooth, modular solid and keyhole slots are interchangeable and user confi gurable to allow for simple on site customization in the field.
- Rigid pendant stem with 30o hang straight for both canopy styles
- Industry leading illumination and craftsmanship
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 3/16"L: 5 3/16"H: 5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)9 W12 W16 W24 W
- Lumens(Approx)900 Lm1025 Lm1350 Lm1875 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%eldoLED ECO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWT24*
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBLSW5-T24-P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
