C4SBD-TZ. BeveLED Mini Connect - 3” Square Downlight For Use With 4” TechZone Ceiling Systems.
 Add to project

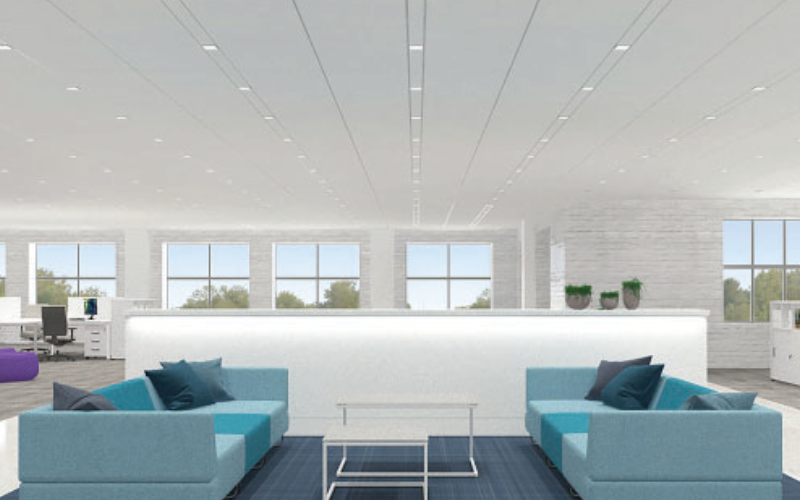

USAI Lighting. C4SBD-TZ. BeveLED Mini Connect - C4SBD-TZ 3” Square Downlight For Use With 4” TechZone Ceiling Systems.

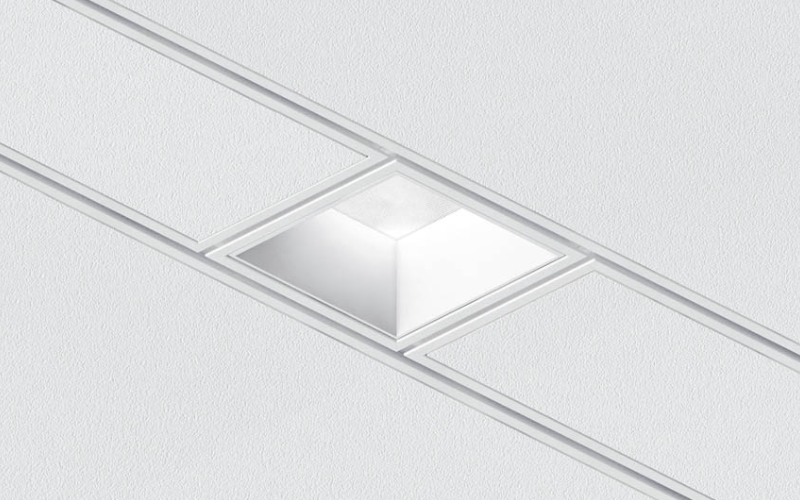

USAI Lighting. C4SBD-TZ. BeveLED Mini Connect - C4SBD-TZ 3” Square Downlight For Use With 4” TechZone Ceiling Systems.
USAI Lighting. C4SBD-TZ. BeveLED Mini Connect - C4SBD-TZ 3” Square Downlight For Use With 4” TechZone Ceiling Systems.
RESOURCES
DESCRIPTION
USAI Lighting and Armstrong Ceiling Solutions have partnered to offer architects and designers a new line of recessed LED downlights with certifi ed fi t and finish for 9/16’’ Armstrong® Ceilings Suspension Systems. USAI’s new downlight series easily fi ts into 4” wide technical zones to streamline the ceiling plane.


  • Designers create a customized, homogeneous ceiling to organize and integrate different service elements
  • Minimal grid visibility provides a clean and sophisticated ceiling fi nish
  • USAI fi xtures simply snap into place after installation of Armstrong® grid; no fi eld painting or modifi cation
  • Industry leading illumination and craftsmanship
  • Full family of downlight, adjustable, and wall wash light fi xtures
  • Seismically tested for use in D, E, F areas

MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 3/8"
    L: 3 3/8"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable White
  • CRI
    80 90 95
  • Watt(Approx)
    9 W15 W12 W20 W18 W
  • Lumens(Approx)
    950 Lm800 Lm1475 Lm1050 Lm1425 Lm1075 Lm2025 Lm
  • Optics
    DirectFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron Hi-Lume 3-wire (L3D)Lutron EcoSystem HeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedTech Zone
  • Housing
    New Construction
  • Housing Depth
    4 ''
