USAI Lighting

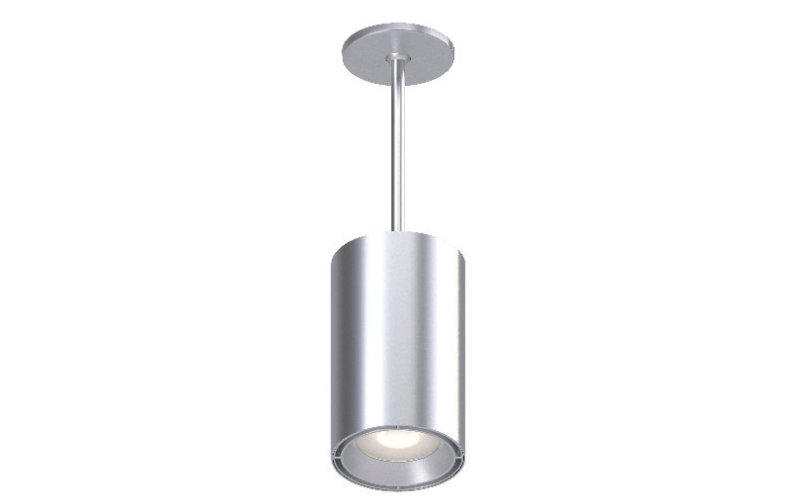

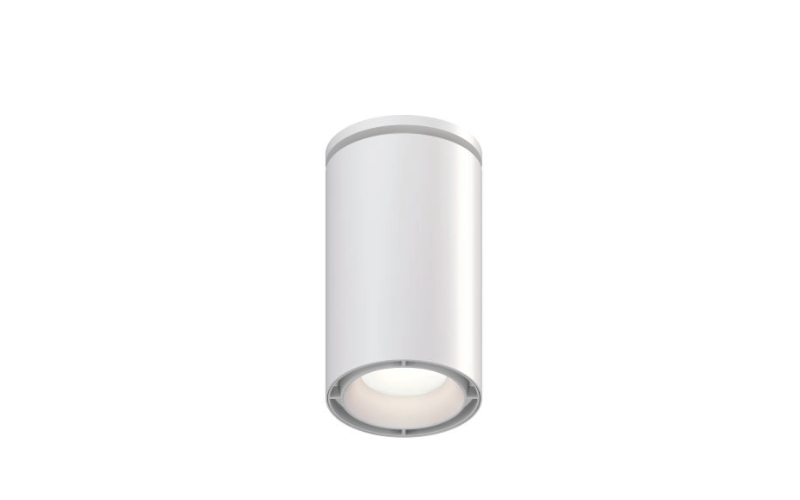

CBRA10. BeveLED 2.2 Cylinder Adjustable Wtec Power over Ethernet (PoE) Ready.
Add to project
RESOURCES
DESCRIPTION
USAI’s comprehensive BeveLED 2.2 product platform is now available with PoE technology. USAI collaborates with Wtec smartengine to deliver the
advantage of a tried and tested connected lighting system solution. Satisfy new IP-based lighting specifi cation requirements with the high quality and
performance USAI Lighting is known for, and the low voltage power distribution and data control connected projects demand.
advantage of a tried and tested connected lighting system solution. Satisfy new IP-based lighting specifi cation requirements with the high quality and
performance USAI Lighting is known for, and the low voltage power distribution and data control connected projects demand.
- Plug-and-play system architecture with Wtec smartengine system compatbility
- Powerful performance in a full range of lumen packages and beamspreads in a variety of standard or custom colors
- Surface mount design conceals mounting hardware and provides seamless fi nish to ceiling plane
- Rigid pendant stem with 30º hang straight feature
- Convenient conduit cutout canopy mounting option for attachment to surface-mounted junction boxes and conduit
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 6"H: 10"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)9 W12 W16 W
- Lumens(Approx)975 Lm1125 Lm1500 Lm
- OpticsDirectFlood
- AdjustableHot Aiming
- Dimming
- Controls/NetworkEthernet
- Power/VoltagePoE
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEW
- EnvironmentDampWet
- Mounting TypePendantCeiling SurfaceConduit Box
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCBRA10-POE-RM-W
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
