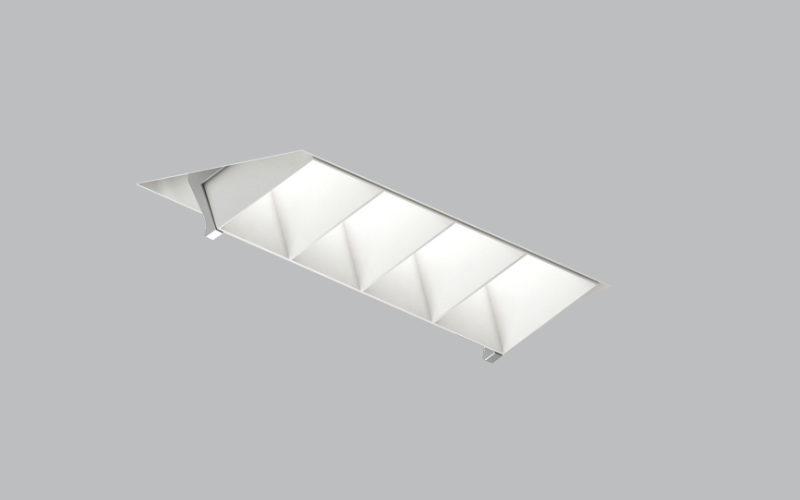

MAL. Micro Adjustable Trimless with Integral Driver Housing.
Add to project
RESOURCES
DESCRIPTION
Meet Micro™— our smallest LED downlight which artistically blends technology and sleek design. Micro provides a unique aesthetic for downlights, with a new linear form factor and jewel-like presence in the ceiling plane. Ceilings are powerful yet whisper quiet with Micro’s minimal aperture size of just 1.25”. Available as an adjustable in 4, 6, 8 and 12 cell configurations, Micro brings elegance and clean style to lobbies, corporate headquarters, hotels and residential applications.
- Micro downlights offer a new form factor for a modern and innovative downlight aesthetic
- Plaster frame trims are compatible with sheetrock mud-in ceiling applications
- Industry leading illumination and craftsmanship
- New construction and remote driver housing options for easy installation in any site condition
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/16"2 9/16"L: 5 11/16"8 3/16"10 11/16"15 11/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)13 W21 W27 W41 W
- Lumens(Approx)950 Lm1375 Lm1900 Lm2850 Lm
- OpticsDirectFlood
- AdjustableLock Aiming
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/TrailingeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew Construction
- Housing Depth4 1/2 ''5 1/16 ''
